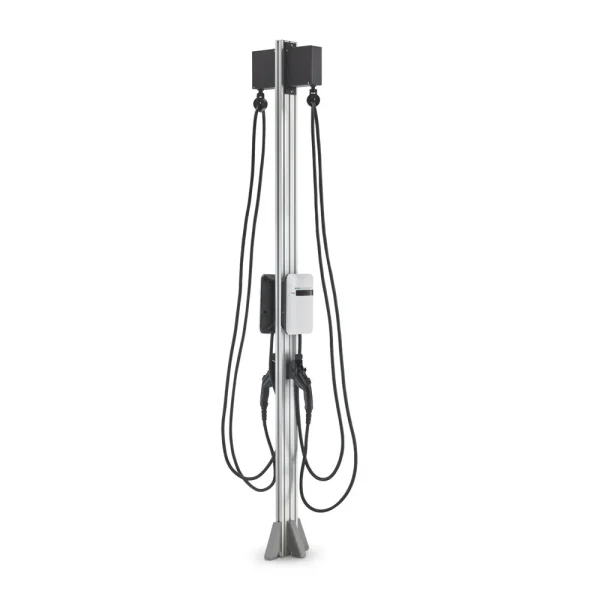

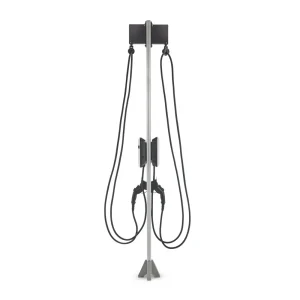

The EvoCharge iEVSE Plus WiFi & 4G Dual Port 8′ Pedestal (EVC3AC0B1A1B4) is a Level 2 EV charger designed for both residential and commercial use. Its dual-port pedestal mount allows for simultaneous charging of two electric vehicles. This charger prioritizes efficient charging, smart features, and a robust design.
KEY FEATURES AND BENEFITS:
- Dual Port Charging: Charge two EVs at the same time, maximizing charging efficiency.
- Adjustable Output: Choose between 30A, 24A, and 16A output settings to match your electrical setup.
- Network Connectivity: WiFi and 4G LTE enable remote monitoring, control, and data collection via OCPP 1.6.
- Access Control: Built-in RFID card reader allows for secure access and payment options.
- Load Management: Optimize power distribution to charging vehicles, preventing overloads.
- Convenient Cable Management: The retractor system keeps charging cables organized and easily accessible.
- Weatherproof Design: NEMA 4 rating ensures reliable performance in any environment.
SPECIFICATIONS:
- Connector Type: SAE J1772
- Charging Level: Level 2 (208-240V)
- Output Current: Adjustable: 30A (7.2kW), 24A (5.76kW), 16A (3.84kW)
- Input Voltage: 208-240VAC, Single Phase
- Connectivity: WiFi, 4G LTE
- Mounting: 8-foot Pedestal
- Operating Temperature: -22°F to 122°F
- Certifications: UL/cUL Listed; SAE J1772, UL 2594, UL 355, CSA; EVOREEL: ETL/cETL
HOW TO USE:
- Installation: A qualified electrician must install the charging station, including the dedicated circuit and pedestal mounting.
- Connection: Plug the charging cable into the EV’s charging port.
- Authentication (if applicable): Use an RFID card or mobile app to initiate charging if access control is enabled.
- Monitoring: Observe the LED indicators on the charging station to track the charging progress. Remote monitoring is also possible via the network connection.
- Completion: Once charging is complete, unplug the cable from the EV. The retractor will neatly store the cable.
BENEFITS OF USING THE EVOCHARGE iEVSE PLUS WIFi & 4G DUAL PORT 8′ PEDESTAL (EVC3AC0B1A1B4):
- Comprehensive EV Charging Solution: Offers numerous benefits for users.
- Smart Features: Network connectivity and load management provide greater control and efficiency.
- Robust Construction: Ensures reliable performance in all conditions.
FEATURES:
- Simultaneous dual EV charging: Efficiently charge two vehicles at once.
- OCPP 1.6 compliant: For seamless network integration.
- Integrated RFID card reader: For access control and payment options.
- Dynamic load balancing: Prevents circuit overload.
- Spring-loaded retractors: For easy cable management.
- NEMA 4 enclosure: Provides weather resistance.
- LED status indicators: For at-a-glance monitoring.
- Hardwire installation: Ensures secure connection.
- 8-foot aluminum pedestal: For convenient mounting.
