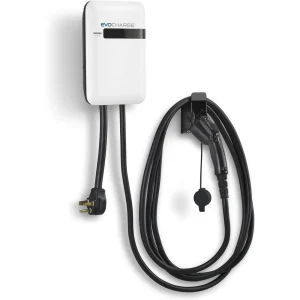

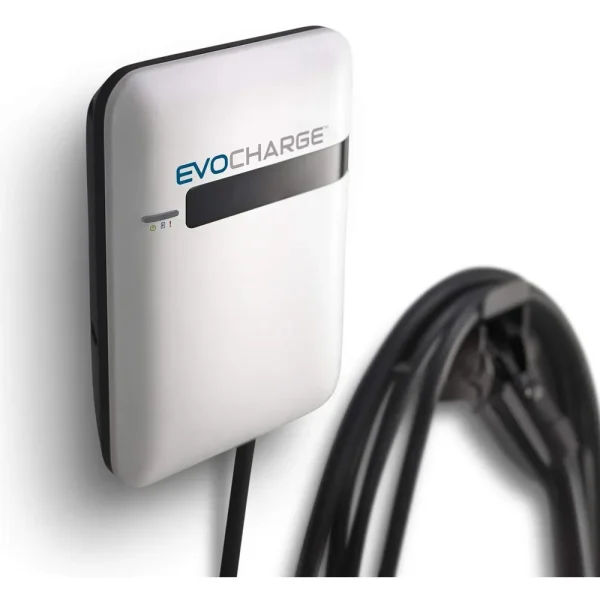

The EvoCharge Level 2 EV Charging Station 32A NEMA 6-50 (EVC3AA0A2E1A1) provides a safe and efficient way to charge your electric vehicle (EV) or plug-in hybrid (PHEV) at home. This 32A charger offers significantly faster charging than standard Level 1 chargers, getting you back on the road quickly. Compatible with all EVs sold in North America, including Tesla (with adapter).
KEY FEATURES AND BENEFITS:
- Rapid Charging: Level 2 charging at 32 amps provides up to 8x faster charging than Level 1, adding 25-35 miles of range per hour.
- Universal Compatibility: Works with all electric vehicles and plug-in hybrids in the US and Canada.
- Easy Installation: Simple plug-in installation with a NEMA 6-50 outlet. A mounting bracket is included for wall or pedestal mounting.
- Adjustable Amperage: Set the maximum current output (32A, 24A, 16A) to match your home’s electrical circuit rating (40A, 30A, 20A).
- Safe and Reliable: UL and cUL (ETL in Canada) listed, NEMA 4 rated for indoor/outdoor use.
SPECIFICATIONS:
- Model: EVSE
- Voltage: 240V
- Current: Adjustable 32A, 24A, 16A
- Cable Length: 18 feet
- Plug Type: NEMA 6-50
- Safety Certifications: UL (USA) and cUL (ETL in Canada)
- Weather Compatibility: NEMA 4 (Indoor/Outdoor)
HOW TO USE:
- Electrical Setup: Ensure you have a dedicated 40A circuit with a NEMA 6-50 outlet. If not, consult a qualified electrician.
- Mounting: Install the included mounting bracket on a wall or pedestal in a convenient location.
- Plug-in: Plug the charging station into the NEMA 6-50 outlet.
- Vehicle Connection: Connect the charging cable to your EV’s charging port.
- Charging: Charging will begin automatically. Monitor the charging status on your vehicle’s display.
- Amperage Adjustment (If Needed): If your circuit is less than 40A, adjust the amperage on the EvoCharge unit accordingly.
BENEFITS OF USING THE EVOCHARGE LEVEL 2 EV CHARGING STATION 32A NEMA 6-50 (EVC3AA0A2E1A1):
- Save Time: Charge your EV much faster than with a Level 1 charger.
- Convenience: Charge at home, whenever you need to.
- Increased Range: Quickly add significant range to your EV.
- Cost-Effective: Potentially lower cost per mile compared to public charging stations.
FEATURES:

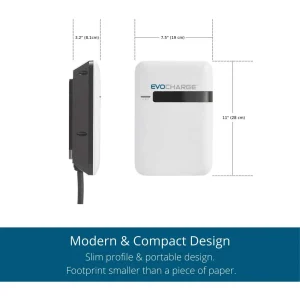

- Compact and modern design.
- 18-foot cable for flexible reach.

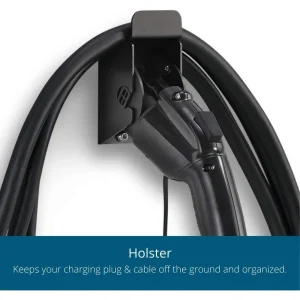

- Integrated plug holster for storage.
- Suitable for all weather conditions.
- Complete installation package included.
