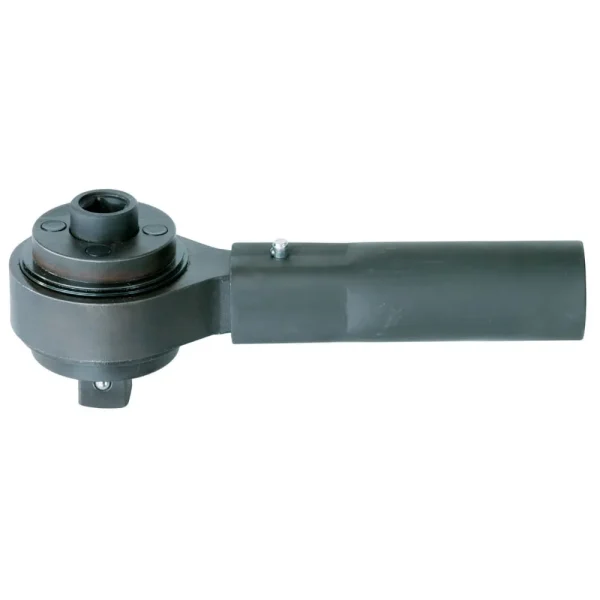

GearWrench 64-830G 750 Foot Pound Torque Multiplier

FEATURES:
• Low input torque is required and can be applied easily by one person using standard 1/2 drive torque wrenches
• Internal planetary gear system provides strength and durability plus an output torque accuracy of +/-5%
• The torque multiplier with an impact socket on the output square is placed on the fastener to be turned with the reaction bar restrained against some substantial part of the equipment being serviced
• Input and output rotate in a matching direction, while the reaction arm moves in the opposite direction from the input/output force
• Torque accuracy of +/- 5% CW between 20% and 100% of wrench capability
• Made in the USA
• 1 year limited warranty; calibration accuracy warrantied for 90 days

SPECIFICATIONS:
• Angle of Turm Protractor: No
• Case Color: Black
• Drive Type: Square
• Finish: Black Oxide
• Gear Ratio: 4.0:1
• Head Length: 2.812 in
• Head Thickness: 3.3 in
• Head Width: 2.812 in
• Included Storage: Blow Mold Case
• Input Drive: 1/2 in
• Material: Steel
• Max Input Torque: 227 ft/lb
• Max Output Torque: 750 ft/lb
• Output Drive: 3/4 in
• Torque Accuracy (20-100% of Full Range): +/-5% Clockwise
• Torque Multiplier Type: Reaction Bar
• Torque Ratio: 3.3:1
• Warranty: 90 Day Calibration/1 Year Parts

The GEARWRENCH family of torque wrenches and torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4 In. to 3/4 In. drives. The flex head wrenches are available in 3/8 In. and 1/2 In. drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8 In. and 1/2 In. drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8 In. and 1/2 In. drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
