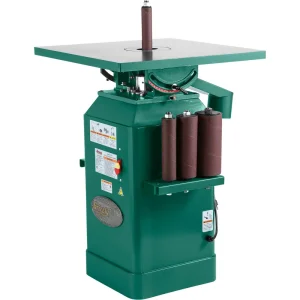

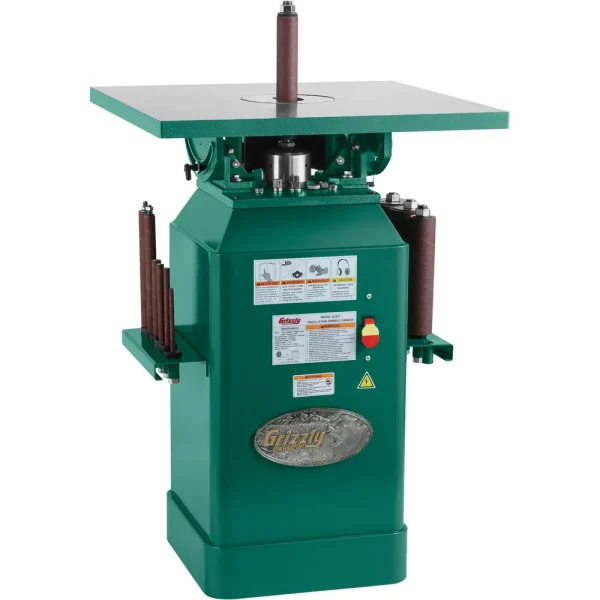

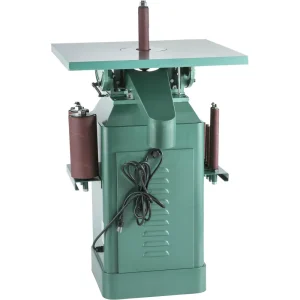

Grizzly Industrial 1 HP Oscillating Spindle Sander (G1071) is designed to handle professional and large-scale hobbyist sanding projects with ease. The spacious 25″ x 25″ cast-iron table ensures stability and support for large workpieces, making it ideal for cabinet doors and bevel edges. Powered by a 1 HP motor, this sander provides a spindle speed of 1725 RPM and a smooth oscillation of 72 OPM with a 1-1/2” stroke.
Interchangeable spindles of various sizes make the oscillating spindle sander versatile for multiple applications, while the tilting table allows for angled sanding of up to 45° front and 15° back.
- Specifications and Dimensions
- Motor: 1 HP, 120V/240V (prewired 120V), single-phase, 12A/6A
- Spindle speed: 1725 RPM
- Stroke length: 1-1/2″
- Spindle oscillation: 72 OPM
- Spindle diameters: 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 1″, 1-1/2″, 2″, 3″, 4″
- Spindle lengths: 5″, 6″, 9″
- Table size: 25″ x 25″
- Table tilt: 45° Front, 15° Back
- Floor-to-table height: 35-1/2″
- Dust port size: 4″
- Overall dimensions: 25-1/2″ x 30″ x 45″
- Shipping weight: 300 lbs.
- Key Features and Benefits
- 1 HP motor with smooth spindle oscillation for precise sanding
- Ten interchangeable spindle sizes for versatile applications
- Integrated 4″ dust port for efficient dust collection
- Durable cast-iron and steel construction for long-term use
- Ground-steel table inserts for added precision
