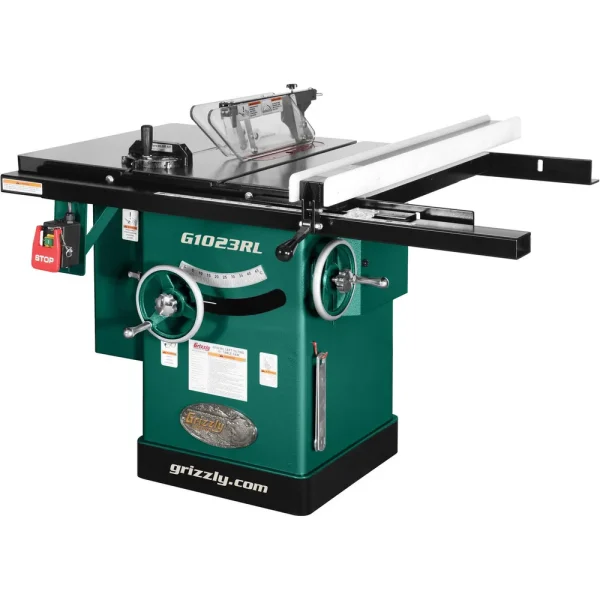

Grizzly Industrial 10″ 3 HP 240V Cabinet Table Saw (G1023RL) is a professional-grade tool designed to be the centerpiece of your workshop. Powered by a robust 3 HP motor and a poly-V serpentine belt system, this saw ensures efficient power transfer and quiet operation.

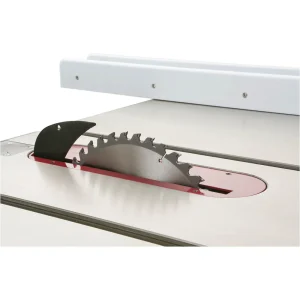

Equipped with a large safety STOP paddle, magnetic switch, and riving knife, this cabinet table saw prioritizes user safety and convenience. The saw’s heat-treated cast-iron table offers durability, while the quick-change system allows seamless transitions between the receiving knife and splitter guard.
- Specifications and Dimensions
- Motor: 3 HP, 240V, single-phase, 14A
- Rip capacity: 32″ right, 14″ left of blade
- Maximum depth of cut @ 90°: 3″
- Maximum depth of cut @ 45°: 2-1/8″
- Overall table dimensions: 40″ W x 27″ D
- Distance from front of table to center of blade: 17″
- Floor-to-table height: 34″
- Arbor diameter: 5/8″
- Arbor speed: 4200 RPM
- Maximum width of dado: 13/16″
- Footprint: 20-1/2″ x 20-1/2″
- Overall dimensions: 66″ W x 47″ D x 40″ H
- Approximate shipping weight: 508 lbs.
- Key Features and Benefits
- Powerful 3 HP motor with 4200 RPM for precise, reliable cuts

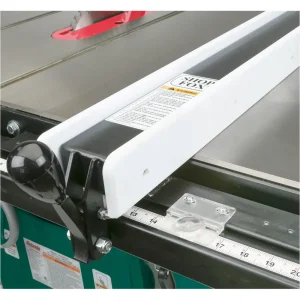

- Precision-ground cast-iron table with T-slots for miter gauge stability

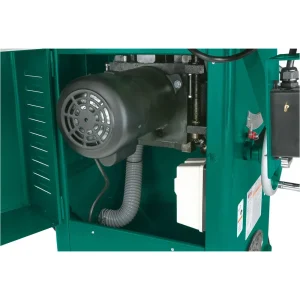

- Poly-V serpentine belt system for efficient and quiet power transfer
- Quick-change system between riving knife and splitter guard
- Magnetic switch with padlock and key for enhanced safety
