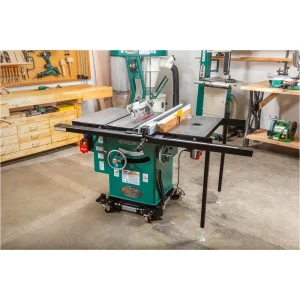

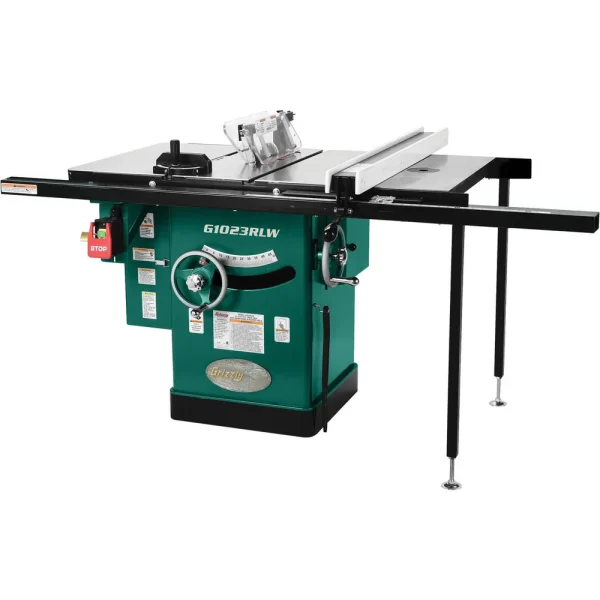

Grizzly Industrial 10″ 3 HP 240V Cabinet Table Saw with Built-in Router Table (G1023RLW) is a versatile, professional-grade woodworking tool designed to streamline your operations. This innovative table saw includes a built-in cast-iron router table that doubles as an extension wing, providing unmatched functionality and space efficiency.

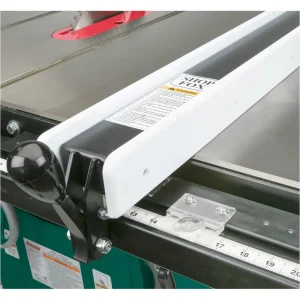

The integrated router table features a universal T-track clamping system and Shop Fox® Classic Fence, making it ideal for precision routing tasks. Enjoy seamless transitions between table saw and router functionality without sacrificing accuracy. The machine also supports laser-straight dadoes without the need for blade changes, enhancing productivity.
- Specifications and Dimensions
- Motor: 3 HP, 240V, single-phase, 14A
- Rip capacity: 32″ right, 14″ left of blade
- Maximum depth of cut @ 90°: 3″
- Maximum depth of cut @ 45°: 2-1/8″
- Overall table dimensions: 48″ W x 27″ D
- Distance from front of table to center of blade: 17″
- Floor-to-table height: 34″
- Arbor diameter: 5/8″
- Arbor speed: 4200 RPM
- Maximum width of dado: 13/16″
- Dust port size: 4″
- Overall dimensions: 66″ W x 47″ D x 40″ H
- Footprint: 20-1/2″ x 20-1/2″
- Approximate shipping weight: 550 lbs.
- Key Features and Benefits
- Built-in cast-iron router table doubles as an extension wing
- Precision-ground cast-iron table ensures stability and durability
- Quick-change riving knife and blade guard for enhanced safety

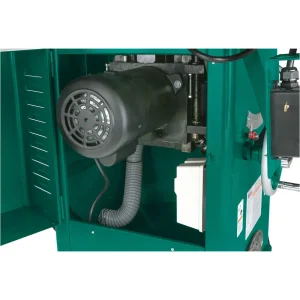

- Poly-V serpentine belt for efficient, quieter power transfer
