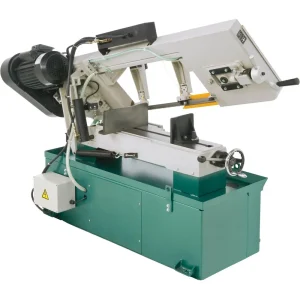

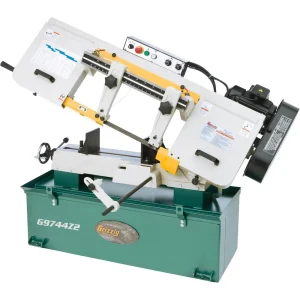

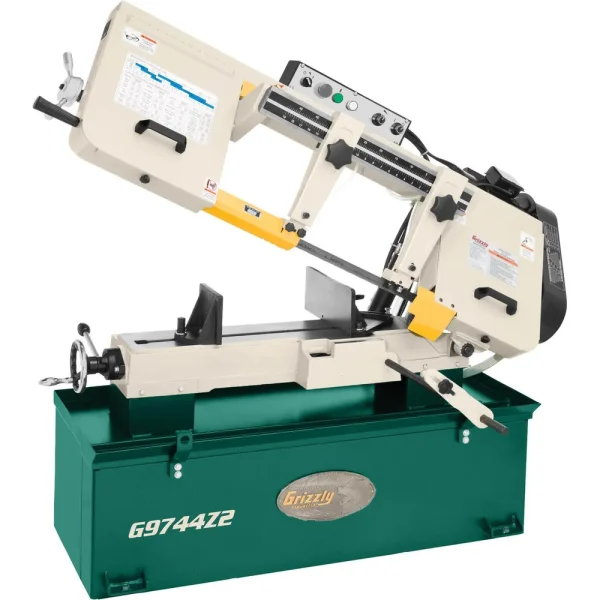

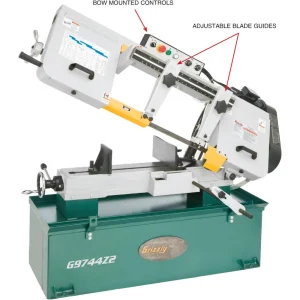

Grizzly Industrial 10″ x 18″ 1-1/2 HP Metal-Cutting Bandsaw (G9744Z2) is a versatile and efficient tool designed for demanding metal-cutting applications. It offers cutting capacities of 10″ round and 10″ x 18″ rectangular stock at 90° and miter angles up to 45°. The built-in 1-1/2 gallon coolant system ensures long blade life and clean cuts by reducing blade and workpiece temperature.
This bandsaw features a quick-clamp vise with positive stops at 90° and 45°, making angle adjustments simple and accurate. The hydraulic downfeed system and blade tension indicator optimize cutting precision and blade longevity.
- Specifications and Dimensions
- Motor: 1-1/2 HP, 220V, single-phase, 15.A
- Blade size: 121-1/2″ x 1″
- Blade speed: 114, 196, 288, 377 FPM
- Cutting capacities:
- 90° Round: 10″
- 90° Rectangular: 10″ x 18″
- 45° Round: 6″
- 45° Rectangular: 7″ x 9-3/8″
- Vise jaw height: 5″
- Vise depth: 12″
- Floor to vise height: 22-3/4″
- Table size: 30″ L x 6-1/2″ W
- Coolant capacity: 2-1/2 gallons
- Footprint: 47″ x 21″
- Overall dimensions: 68″ L x 24-1/2″ W x 41-1/2″ H
- Approximate shipping weight: 760 lbs.
- Key Features and Benefits
- Adjustable hydraulic downfeed for optimized cutting precision
- Four blade speeds for versatile material handling
- Heavy-duty one-piece steel base for stability
- Worm gearbox with hardened and ground gears
- Magnetic safety switch for operator protection
