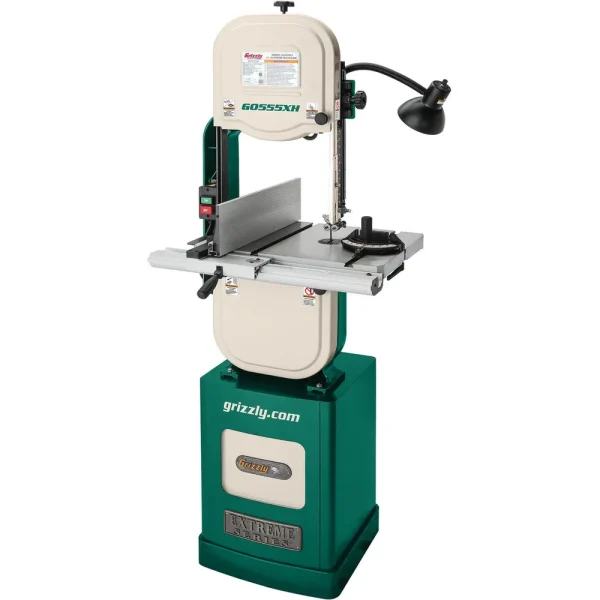

Grizzly Industrial 14″ 1-3/4 HP Extreme Series Resaw Bandsaw (G0555XH) delivers unmatched precision and power for woodworking projects. Equipped with a 1-3/4 HP motor and a full 12-inch resaw capacity, this bandsaw is ideal for cutting veneers and thicker wood sections with ease. The precision-ground cast-iron table and rack-and-pinion guidepost provide stability and smooth operation.
This bandsaw features computer-balanced cast-iron wheels for vibration-free cuts. The extruded aluminum resaw fence ensures accurate tracking, while the quick-release blade tensioner makes blade changes hassle-free.
- Specifications and Dimensions
- Motor: 1-3/4 HP, 110V/220V (prewired 110V), single-phase, 15A/7.5A
- Maximum cutting width left of blade: 13-1/2″
- Maximum cutting height (resaw capacity): 12″
- Table size: 16-1/8″ x 21-3/4″
- Table tilt: 5° left, 45° right
- Floor-to-table height: 44-5/8″
- Blade size: 104″–105″ (1/8″–3/4″ wide)
- Blade speed: 1690, 2950 FPM
- Dust port size: 4″
- Overall dimensions: 26″ W x 31″ D x 78″ H
- Footprint: 16″ x 18″
- Approximate shipping weight: 334 lbs.
- Key Features and Benefits
- Precision-ground cast-iron table for stability and smooth operation
- Heavy-duty cast-iron frame for durability

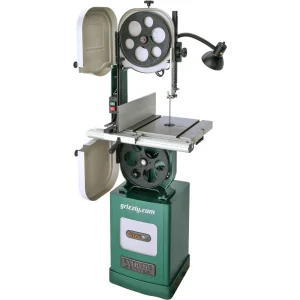

- Computer-balanced cast-iron wheels with rubber tires
- Dual blade speeds for versatility
- Includes miter gauge and 3/8-inch 6-TPI hook blade
- Integrated work light for improved visibility
