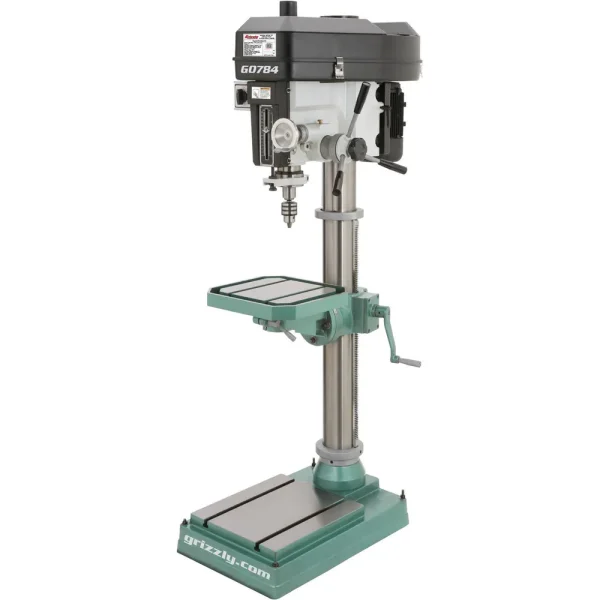

Grizzly Industrial 15″ Heavy-Duty Floor Drill Press (G0784) offers robust performance and precise operation for demanding workshop tasks. Powered by a 2 HP motor and featuring 12 adjustable speeds, this versatile drill press is capable of cutting through mild steel, wood, and plastic with ease.

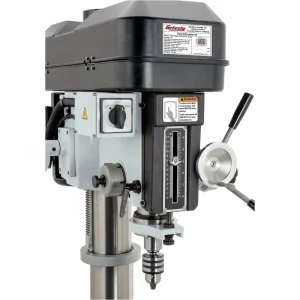

This drill press is designed for heavy-duty use, featuring a forward/reverse switch, fine down feed control with 0.01″ micrometer accuracy, and a fully adjustable head for greater flexibility. The base includes a precision-ground work surface with T-slots for additional clamping options.
- Specifications and Dimensions
- Motor: 2 HP, 220V, single-phase, 8.6A
- Swing: 15″
- Drill chuck: 1/64″–1/2″
- Drilling capacity: 1-1/8″ mild steel
- Spindle taper: R-8
- Spindle travel: 4-5/8″

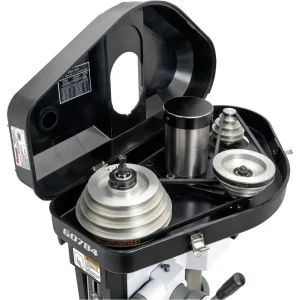

- Spindle speeds: 12, 140—2436 RPM
- Maximum movement of the head: 7-13/16″
- Table size: 14″ x 15″
- Table swing: 360°
- Table tilt: 60° L/R
- Table T-slots: 2, 1/2″
- Vertical table travel: 23-1/2″
- Column diameter: 4-1/2″
- Footprint: 18″ W x 26″ D
- Overall dimensions: 23″ W x 35-1/2″ D x 67″ H
- Approximate shipping weight: 772 lbs.

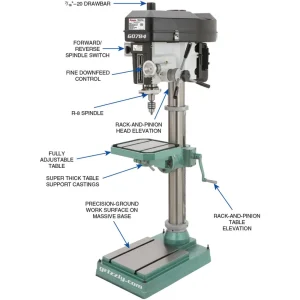

- Key Features and Benefits
- Solid cast-iron construction for durability
- 360° table and head positioning for versatile use
- Forward/reverse switch for added flexibility
- Base includes T-slots for secure clamping
