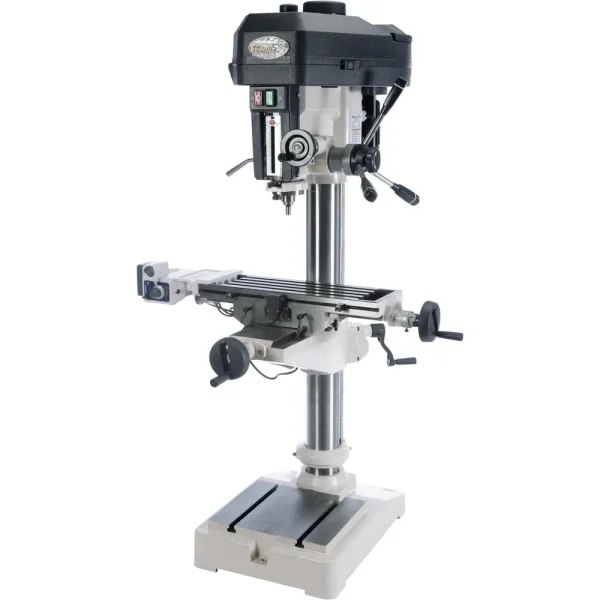

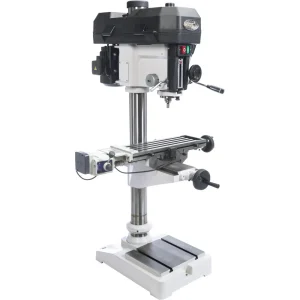

Grizzly Industrial 16″ Drill Press w/ Cross-Slide Table & Power Feed (G0810) offers exceptional precision and power for industrial-grade drilling projects. Featuring a 1.5 HP motor, 12-speed settings ranging from 150–3000 RPM, and a cross-slide table with longitudinal power feed, this drill press ensures superior performance and adjustability for various applications.
Built for durability, this drill press boasts a heavy-cast 26″ x 19″ base and a robust 4-1/2″ column, ensuring stability during operation. The 360° table swivel and generous 5-1/8″ spindle travel provide enhanced flexibility for complex tasks.
- Specifications and Dimensions
- Motor: 1-1/2 HP, 220V, single-phase, 11.5A
- Swing: 16″
- Spindle taper: MT#3
- Spindle travel: 5-1/8″
- Number of spindle speeds: 12
- Spindle speed range: 150–3000 RPM
- Max distance spindle-to-table: 19-7/8″
- Table size: 23-1/16″ L x 7-1/2″ W x 1-3/4″ H
- Vertical table travel: 20″
- Table swivel (left/right): 360°
- Quill diameter: 2.95″
- Drawbar thread size: M12″-1.75
- Drilling capacity mild steel: 1-1/4″
- End milling capacity: 3/4″
- Face milling capacity: 3″
- T-slot width: 1/2″ (4 on table, 2 on base)
- Footprint: 26″ L x 19″ W
- Overall dimensions: 42″ W x 39-1/2″ D x 65″ H
- Approximate shipping weight: 685 lb.

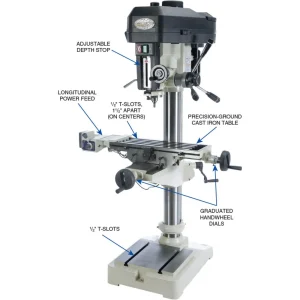

- Key Features and Benefits
- 12 spindle speeds between 150–3000 RPM for versatile applications
- Cross-slide table with longitudinal power feed
- Heavy-duty 26″ x 19″ base for added stability
- MT#3 spindle taper with 5-1/8″ spindle travel
- 360° table swivel for flexible positioning
