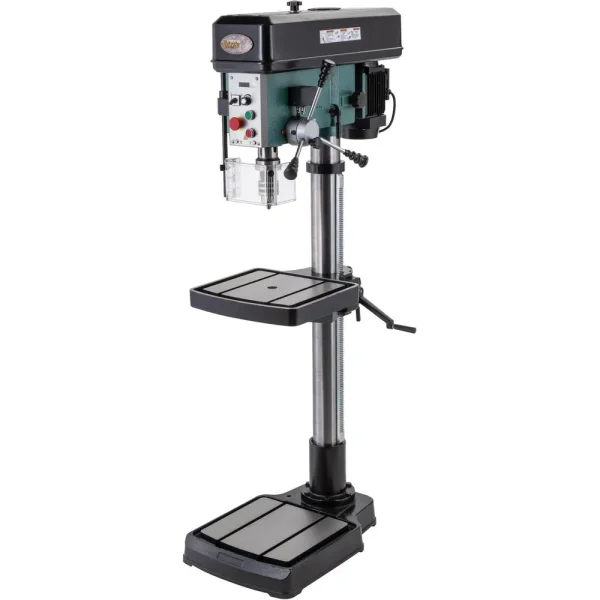

Grizzly Industrial 20″ Floor Variable-Speed Tapping Drill Press (T33963) is designed for professionals and workshops, this drill press combines powerful tapping capabilities with variable-speed control, allowing you to achieve flawless threading every time. The versatile spindle speed ranges, digital readout, and reversible spindle rotation make it easy to fine-tune operations based on material and project requirements.
Built with a durable cast-iron base, adjustable headstock, and Class II laser guide, this floor drill press ensures maximum accuracy, safety, and stability for every job.
- Specifications and Dimensions
- Motor: 1 HP, 120V, 3-phase (with inverter for single-phase power), 4A
- Required Power Supply: 120V, single-phase, min. 20A circuit
- Swing: 20″
- Spindle Taper: MT#3
- Spindle Speed: Variable, 0-600, 0-2100 RPM
- Drill Chuck: 1/2″, JT3 keyed
- Tapping Capacity: 5/8″
- Table Size: 15″ x 16-1/4″
- Table Swivel Around Column: 360°
- T-slots: (x2) 9/16″, 7-5/8″ on center
- Overall Dimensions: 22″ W x 33-1/2″ D x 70″ H
- Approximate Shipping Weight: 496 lbs.
- Key Features and Benefits
- Two variable-speed spindle ranges for precise control
- Reversible spindle rotation for tapping applications
- Variable frequency drive for 3-phase control using single-phase power
- Adjustable headstock height and Class II laser guide for accurate drilling
- Rack-and-pinion table elevation control for quick adjustments
- Built-in LED work light for enhanced visibility
- Square chuck guard with micro switch for added safety
- Clear chip guard to protect against debris
- Belt cover safety switch prevents accidental operation
- Durable cast-iron base with two 9/16″ T-slots for stability
