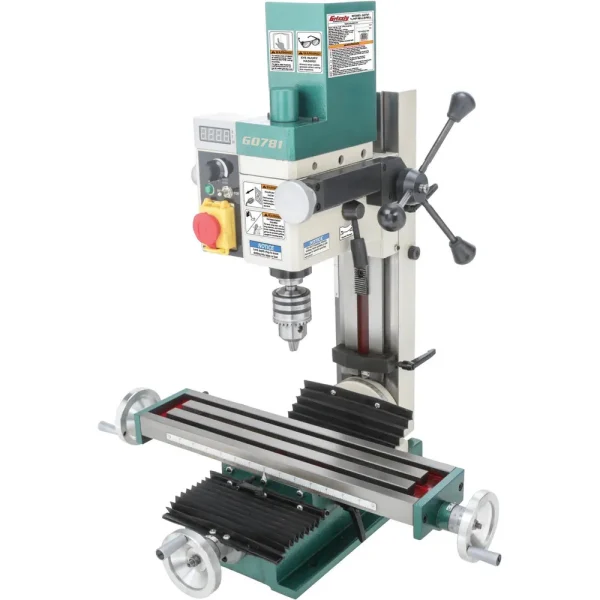

Grizzly Industrial 4″ x 18″ 3/4 HP Mill/Drill (G0781) offers precision and power in a compact bench-top design. Its 4-1/4″ x 18″ table provides ample space for various projects, ensuring versatility and efficiency for all your machining needs.

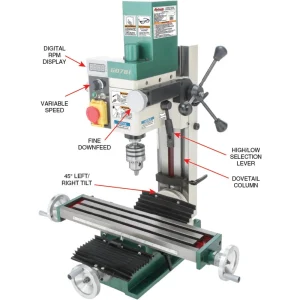

This mill drill is designed with convenience and durability. The head adjusts up and down the column and tilts 45° left or right for added flexibility. Its robust R-8 spindle and precision-ground dovetail column add to its reliability, ensuring long-lasting performance for professionals and hobbyists alike.
- Specifications and Dimensions
- Motor: 3/4 HP, 110V, single-phase, 5A
- Spindle taper: R-8
- Spindle speeds: Variable, 50–1000 and 100–2000 RPM
- Max distance spindle-to-column: 6-3/8″
- Max distance spindle-to-table: 11-1/2″
- Drilling capacity: 1/2″ mild steel
- End milling capacity: 1/2″
- Face milling capacity: 1″
- Head travel: 7-1/16″
- Column tilt: 45° left/right
- Table size: 4-1/4″ x 18″
- T-slots: 3 @ 1-1/4″ centers, 7/16″ wide
- Table travel (longitudinal): 11-13/16″
- Table travel (cross): 5-1/8″
- Overall size: 26-1/2″ W x 20-1/2″ D x 31″ H
- Approximate shipping weight: 167 lbs.
- Key Features and Benefits
- Digital readout display for clear operation
- Adjustable depth stop for repeatable cuts
- Rubber chip guards for cleaner workspaces
- Includes a 3–16mm JT3 drill chuck for added utility
