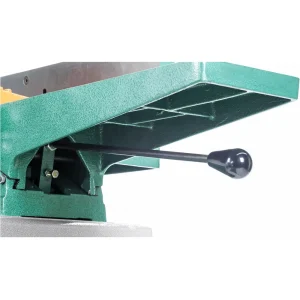

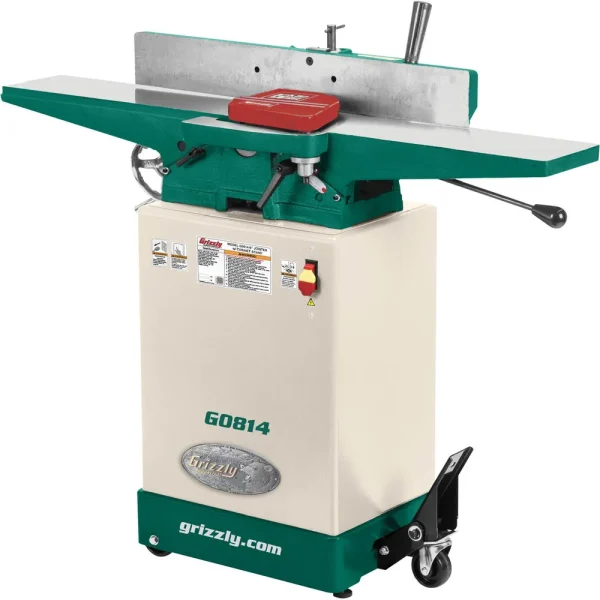

Grizzly Industrial 6″ x 48″ Jointer with Cabinet Stand (G0814) is a versatile and reliable solution for any small shop or woodworking enthusiast. Equipped with a precision-ground cast-iron table on dovetail ways, this jointer ensures smooth, accurate adjustments.
This jointer includes a center-mounted fence that is fully adjustable, with stops at 45°, 90°, and 135° for common bevel cuts. The cabinet stand features a built-in mobile base, offering stability and mobility. This jointer is designed to meet your needs with ease and efficiency.
- Specifications and Dimensions
- Motor: 1 HP, 110V/220V (prewired 110V), single-phase, 14A/7A
- Maximum width of cut: 6″
- Maximum depth of cut: 1/8″
- Maximum rabbeting depth: 1/2″
- Cutterhead diameter: 2-1/2″
- Cutterhead type: 3-knife
- Knife size: 6″ x 1″ x 1/8″
- Cutterhead speed: 5000 RPM
- Table size: 6-5/8″ x 47-3/8″
- Fence size: 29-1/8″ x 4″
- Minimum stock length: 8″
- Minimum stock width: 3/4″
- Minimum stock thickness: 1/2″
- Dust port size: 4″
- Footprint: 13-1/2″ x 18″
- Overall dimensions: 47-1/2″ W x 20″ D x 42″ H
- Approx. shipping weight: 260 lbs.
- Key Features and Benefits

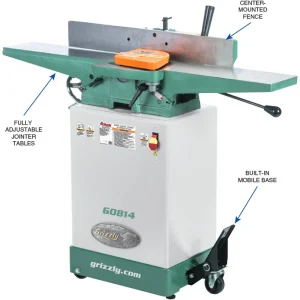

- Cabinet stand with built-in mobile base for stability and mobility

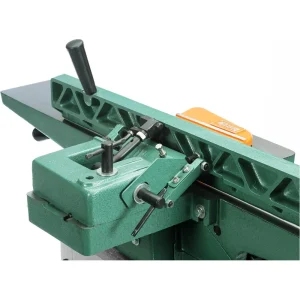

- Heavy-duty center-mounted fence with stops at 45°, 90°, and 135°
- 3-knife cutter head for cleaner, precise cuts
- V-belt drive for reliable performance
