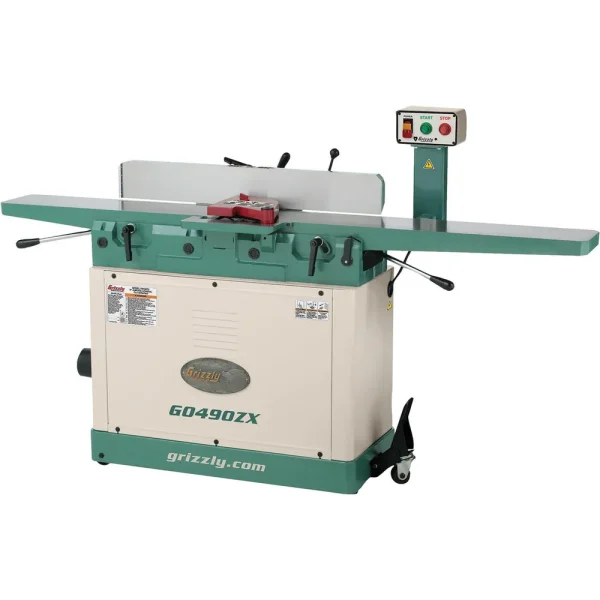

Grizzly Industrial 8″ Jointer with Spiral Cutterhead (G0490ZX) delivers smooth cuts and professional-grade performance. Designed with a 3 HP motor and a 4-row spiral cutter head, it features 40 indexable carbide inserts for sharp, tear out-free results on any stock.
This jointer includes parallelogram beds for consistent table alignment and an extended 43″ infeed table for handling long workpieces. A 5″ tall, center-mounted fence and rabbeting capabilities enhance edge-jointing and versatility, while the built-in mobile base ensures easy maneuverability in your shop.
- Specifications and Dimensions
- Motor: 3 HP, 220V, single-phase, 14A
- Maximum width of cut: 8″
- Maximum depth of cut: 1/8″
- Maximum rabbeting depth: 1/2″
- Cutterhead diameter: 3-3/8″
- Cutterhead type: 4-row spiral
- Insert size, type: 14 x 14 x 2mm, indexable carbide
- Cutterhead speed: 5409 RPM
- Table size: 8″ x 76″
- Fence size: 5″ x 36″
- Minimum stock length: 10″
- Minimum stock thickness: 1/2″
- Dust port size: 4″
- Overall dimensions: 76-1/2″ W x 24″ D x 45-1/2″ D
- Approximate shipping weight: 593 lbs
- Key Features and Benefits
- 4-row spiral cutterhead with 40 carbide inserts for tearout-free results
- Parallelogram bed design ensures accurate and consistent alignment
- Extended 43″ infeed table simplifies handling longer stock

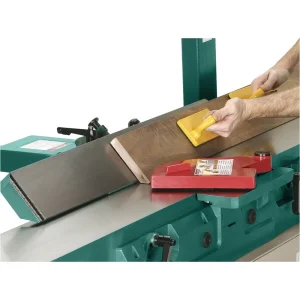

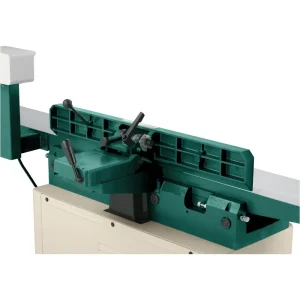

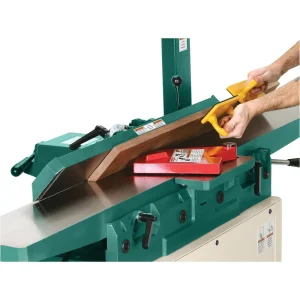

- 5″ tall, center-mounted fence ideal for edge-jointing wide pieces
- Built-in mobile base offers effortless shop maneuverability
- Poly-V belt drive system minimizes maintenance while maximizing power
- Rabbeting capabilities expand your woodworking versatility
