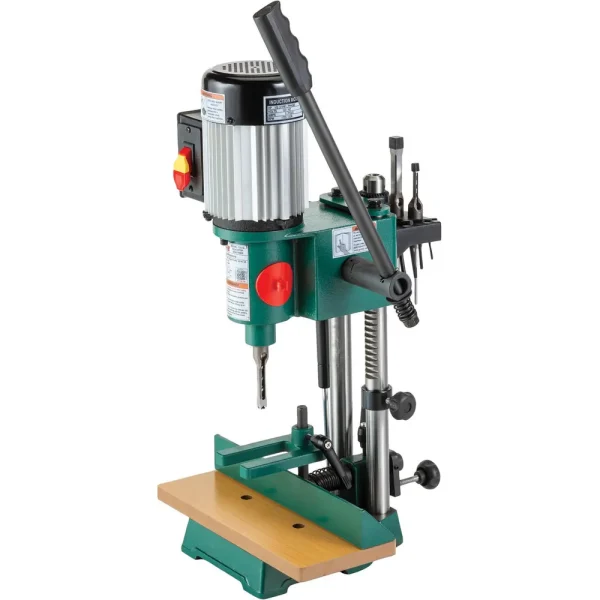

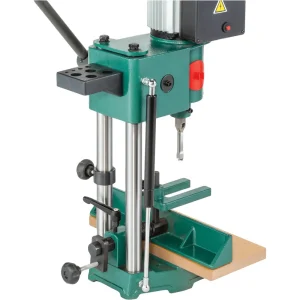

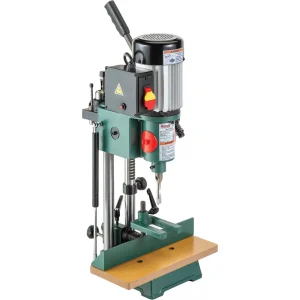

Grizzly Industrial Benchtop Hollow-Chisel Mortiser (T33127) is a versatile benchtop tool that delivers precise square hole cuts using four-sided chisels around a drill bit. Designed to handle tough woodworking tasks, this mortiser also doubles as a drill press, accommodating bits up to 1/2″ in size.
This mortiser allows easy depth adjustments to suit different workpiece thicknesses. With its lightweight design, double steel support columns, and built-in tool storage rack, this mortiser combines portability with reliable rigidity for precision mortising.
- Specifications and Dimensions
- Motor: 1/2 HP, 120V, single-phase, 5A
- Spindle speed: 1725 RPM
- Spindle taper: B16
- Spindle travel: 4-1/4″
- Maximum stock width: 13-3/8″
- Maximum stock thickness: 4″
- Maximum chisel travel: 4-7/8″
- Maximum mortising depth: 3″
- Maximum distance column-to-chisel: 5-1/8″
- Maximum chisel size: 1/2″
- Chuck size: 1/2″
- Collar size: 3/4″
- Table size: 13-1/2″ x 6″
- Base footprint: 10″ x 8″
- Overall dimensions: 13-1/2″ W x 22″ D x 30-1/2″ H
- Approximate shipping weight: 67 lbs.
- Key Features and Benefits
- Converts into a drill press with extra chuck and arbor
- Coarse and fine fence adjustment for accuracy
- Gas spring for smooth head return
- Includes: 1/4″, 3/8″, and 1/2″ chisels
