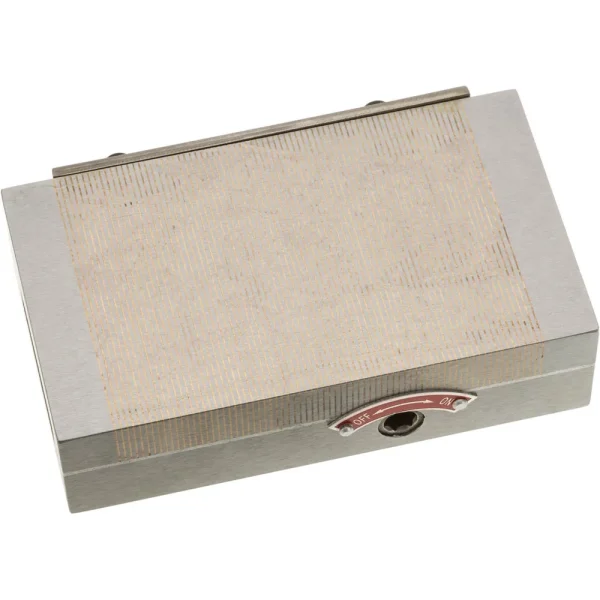

Grizzly Industrial Dense Magnetic Chuck provides exceptional precision for surface grinding tasks. With finely spaced brass and steel poles, it ensures uniform holding for small parts. Designed for durability, it features a sealed surface to protect against dirt and liquid.
This magnetic chuck offers a high holding power of up to 140 lb./sq. in., ensuring stability during operation. Its adjustable side rail, removable handle, and toe clamps enhance usability, while the working surface remains parallel to the base within 0.0004″.
- Specifications and Dimensions
- Pole height: 0.70″
- Table height: 1.75″
- Brass pole spacing: 1/32″
- Steel pole spacing: 1/16″
- High holding power: max 140 lb./sq. in.
- Sealed against dirt and liquid
- Working surface parallel to base within 0.0004″
- Removable handle to turn magnetic force on and off
- Toe clamps fit 1/2″ T-slots
- Key Features and Benefits
- Finely spaced poles ensure uniform holding for small parts
- Durable construction resists dirt and liquid ingress
- Adjustable side rail and removable handle for versatility
- Precise alignment with surface parallelism within 0.0004″
- High holding power ensures stable and safe operation
