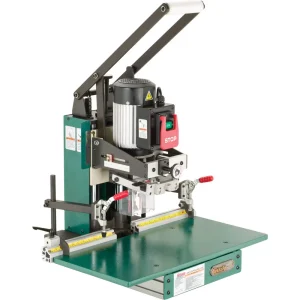

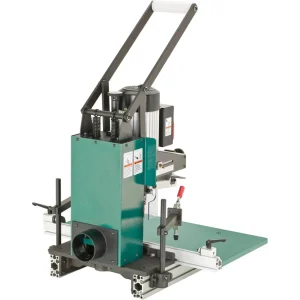

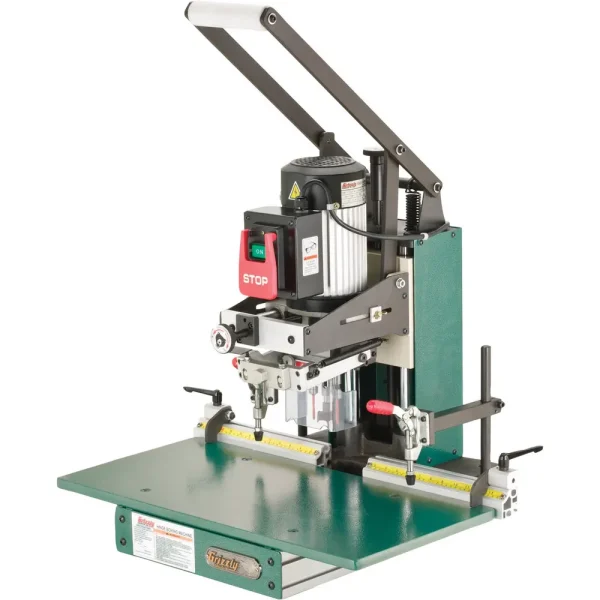

Grizzly Industrial Hinge Boring Machine (G0718) delivers professional-quality results for both small and large woodworking projects. Designed to handle one piece of wood at a time, it features a powerful 1 HP motor running at 3440 RPM, enabling you to bore multiple hinges efficiently. The adjustable depth stop ensures every hole is clean, accurate, and consistent.
Engineered with versatility in mind, the Grizzly G0718 Hinge Boring Machine includes adjustable hold-down clamps to secure materials during operations, enhancing precision and safety.
- Specifications and Dimensions
- Motor: 1 HP, 110V/220V (prewired 110V), single-phase, 10A/5A
- Table size: 28″ wide x 13-3/4″ deep
- Maximum throat: 4″
- Fence length: 12″ (x 2), plus 28″ left extension
- Stroke: 4″
- Stroke operation: Manual
- Dust port: 4″
- Footprint: 22-1/2″ W x 15-1/2″ D
- Overall dimensions: 29″ W x 25″ D x 36-5/8″ H
- Approximate shipping weight: 198 lbs.
- Key Features and Benefits
- Built-in 4″ dust port for clean and debris-free operation
- Two toggle hold-down clamps for secure material positioning
- Interchangeable boring heads (sold separately) for added versatility
- Durable construction with SUJ-2 high-carbon steel slide shafts
- See-through guard for added operator safety
- Hinge alignment swing arm for precise setups
