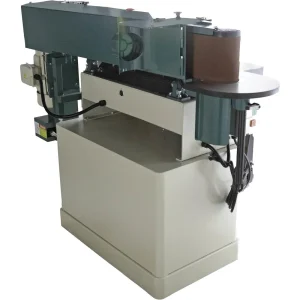

Grizzly Industrial Oscillating Edge Sander delivers versatile sanding performance for woodworking and metalworking projects. Whether you need precision for small production shops or durability for larger tasks, this machine combines a powerful motor with an oscillating belt system for exceptional results.
Both models include a spindle sanding attachment with interchangeable spindle drums, making them suitable for contour sanding tasks. Designed for ease of use, the sanding belt tilts for angle adjustments, and the table height is controlled via a convenient handwheel.
- Specifications and Dimensions
- G0563:
- Motor: 2 HP, 240V, single-phase, 9A
- Sanding belt speed: 3150 FPM
- Sanding belt size: 6″ x 89″
- Sanding belt oscillation stroke: 1/4″
- Sanding belt tilt: 90°
- Table size: 26-7/8″ x 12″
- Table travel: 3-3/4″
- End table size: 10″ x 11-1/2″
- End table travel: 10″
- Platen with graphite pad: 6-3/4″ x 30-1/4″
- Drive drum diameter: 7″
- Idler roller diameter: 3-7/8″
- Spindle drums: 1-1/2″, 2″, 3″, and 4-1/2″
- Overall dimensions: 50-1/2″ W x 23″ D x 49″ H
- Approximate shipping weight: 504 lbs

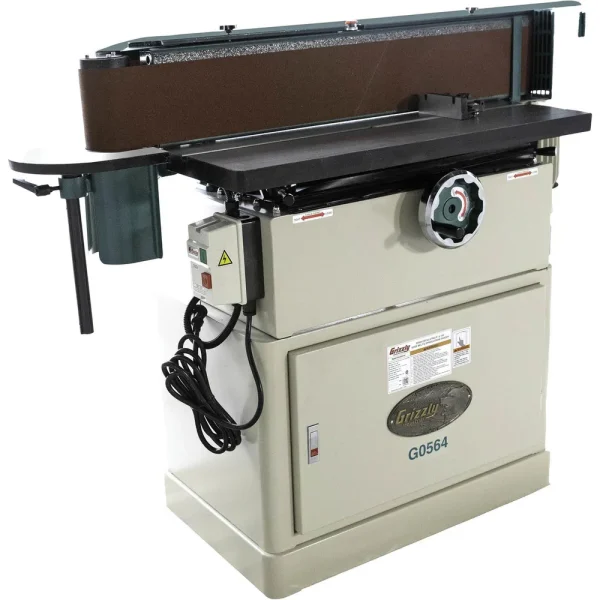

- G0564:
- Motor: 3 HP, 240V, single-phase, 11A
- Sanding belt speed: 3150 FPM
- Sanding belt size: 6″ x 108″
- Sanding belt oscillation stroke: 1/4″
- Sanding belt tilt: 90°
- Table size: 35-1/2″ x 12″
- Table travel: 4″
- End table size: 10″ x 11-1/2″
- End table travel: 10″
- Platen with graphite pad: 6-3/4″ x 39-3/4″
- Drive roller diameter: 7″
- Idler roller diameter: 3-7/8″
- Spindle drums: 1-1/2″, 2″, 3″, and 4-1/2″
- Overall dimensions: 60″ W x 28″ D x 49″ H
- Approximate shipping weight: 597 lbs

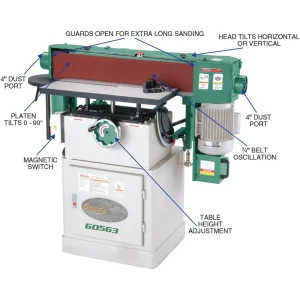

- Key Features and Benefits
- Sanding surface tilts vertical to horizontal for versatile applications
- Quick-release belt tension lever for easy belt changes

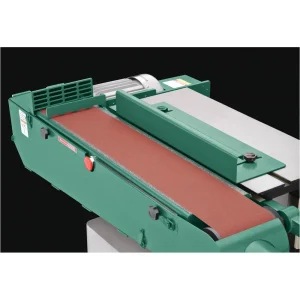

- Graphite-coated platen minimizes friction and enhances belt life
