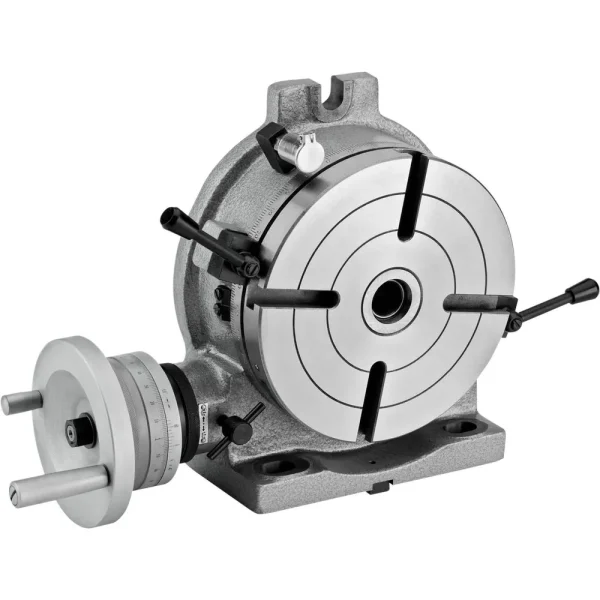

Grizzly Industrial Yuasa-Type Horizontal Vertical Rotary Tables deliver unmatched precision and reliability for a wide range of drilling and milling operations. Available in 8″, 10″, and 12″ sizes, these rotary tables are perfect for creating arcs, eccentric cuts, large diameter holes, and circular profiles.
Each rotary table is built with high-precision features, including vernier scales for exact intervals and positive dual-action locks for stability. Whether used for advanced machining or intricate detailing, the Grizzly Yuasa-Type Rotary Tables provide reliable accuracy and smooth operation with their oil-immersed gears and robust construction.
- Specifications and Dimensions
- 8″ Rotary Table (G9298):
- Size: 8″
- Total T-slots: 4
- T-Slot size: 0.465″
- Center Hole: MT #3
- Overall height (horizontal): 3.944″
- Height to center hole (vertical): 5.985″
- Table height in horizontal position: 4″
- Table height in vertical position: 9-1/4″
- Approximate weight: 75 lbs.
- 10″ Rotary Table (G9299):
- Size: 10″
- Total T-slots: 6
- T-Slot size: 0.465″
- Center Hole: MT #3
- Overall height (horizontal): 4.330″
- Height to center hole (vertical): 6.750″
- Approximate weight: 117 lbs.
- 12″ Rotary Table (G9300):
- Size: 12″
- Total T-slots: 6
- T-Slot size: 0.545″
- Center Hole: MT #4
- Overall height (horizontal): 4.750″
- Height to center hole (vertical): 8.250″
- Approximate weight: 168 lbs.
- Key Features and Benefits
- Oil-immersed gears for smooth operation and durability
- Positive dual-action table locks for stability during use
- Low-profile design for seamless integration into any workspace
