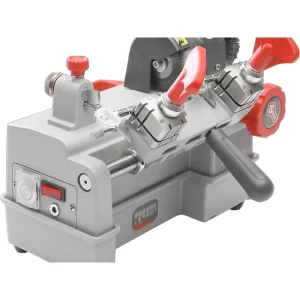

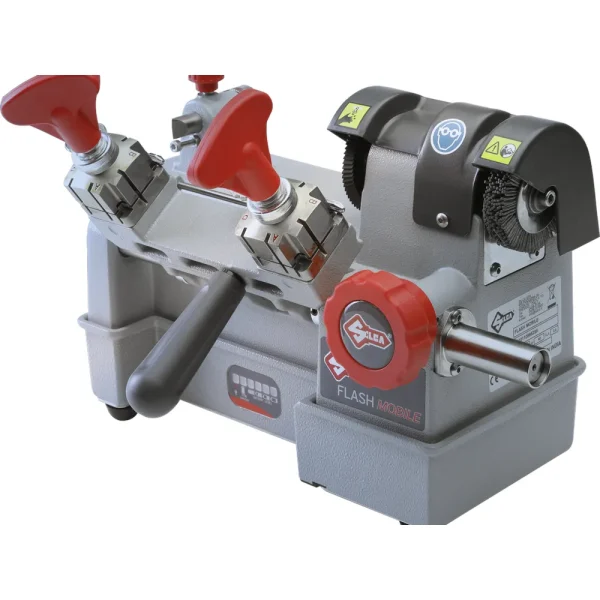

Ilco BB0037XXXX Flash Mobile Portable Key Cutting Machine Duplicator For Edge-Cut Keys

Ilco BB0037XXXX Flash Mobile Portable Key Machine Duplicator For Edge-Cut Keys

Unlike the popular Flash 008 machine, FLASH MOBILE is a battery-operated version that makes it truly a “mobile” machine. The 24V battery allows the machine to operate at 2200 RPM and will cut 300+ brass keys in a single charge.

Highlights:

• Designed to cut typical residential, commercial, and automotive keys including those with large bows or long blades as well as tip stop and flip-type keys.
• Four jaw positions easily clamp virtually all types of edge cut keys available on the market
• Wear-resistant components: Nickel-plated clamps provide long life
• Space-saving solution for fixed or mobile use
• The rotating knob ensures precise horizontal movements

Supported Edge-Cut Keys:

• Residential
• Commercial
• Automotive keys including those with large bows or long blades as well as tip stop and flip-type keys

Optimized calibration: A tracer point adjustment system for fast, precise calibration in increments of .001” (.025 mm).

Wear-resistant components: The cutter is AlTiN (Aluminum Titanium Nitride) coated for longer life and oxidation resistance even at temperatures up to 800°C (1,472°F). Teflon-coated bushings provide protection to the carriage shaft and guarantee a smoother, quieter movement.

Four-position clamps mean flexibility of use: The four jaw positions easily clamp virtually all edge cut keys present on the market. Clamps are nickel-plated to provide long life. The clamps can be quickly and smoothly rotated by simply loosening the knob and rotating the clamp into the proper jaw position. Two large, ergonomic clamp handles tighten with a minimum of force to hold the key securely.
3-1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and
long blade keys including flip style automotive keys.

Smooth carriage movements: The space-saving rotating knob ensures precise horizontal movements. The carriage can also be easily moved manually using the front lever.

Space-saving solution for fixed or mobile use: The mounting bracket, supplied as standard, allows the machine to be secured to a work-bench and the built-in carry handle makes it easily transported to the job-site.

Safe for the user: The protective cover on the switch protects from unintentional
start-up. Cutter and “tynex” de-burring brush is housed behind a protective cover. An inverted frame protects the PCB and battery from key shavings.

Warranty: 2 years (excluding battery)

Specifications:

• Power Supply: 24V battery
• Battery Capability: 2950mAh lithium-ion
• Battery Life: 300+ brass keys in a single charge / LED indicator for monitoring battery charge status
• Cutter Motor: 120W, 2200 RPM +/- 10%
• Movements: by rectified carriage shaft and rack
• Cutter: AlTiN coated HSS (Super Rapid Steel)
• Target Cutter Life: 1,100 brass keys Carriage Runs: (maximum length of cuts) 42mm – 1.65”
• Dimensions: Width: 320 mm – 12.6” Depth: 255 mm – 10.5” (with carry handle) Height: 255 mm – 10.5”
• Weight: 7 kg – 15.4 lbs.
• Noise level: Sound pressure Lp(A) = 56 dB(A)
• Ideal Environmental conditions: between 10-40? C (50-104? F) 60% humidity

Included Accessories:

• 2.5mm, 3mm, 4mm, 5mm allen keys
• Adjusting keys (2 pcs)
• Stop bars (2 pcs)
• 1.20 mm and 1.70 mm steel pins (2 each)
• Cutter release rod
• Mounting bracket
• Charging/Power cord

” For technical support, please contact Kaba Ilco – 1-800-334-1381, option 8. JB Tools will not accept a return of your key machine until there is a documented call to the Kaba Ilco tech support team and the Kaba Ilco sales representative. We strive to serve our key machine customers in the best possible manner and want to make sure we provide all avenues of support. Key machines that are used and not defective may not be eligible for return. “
