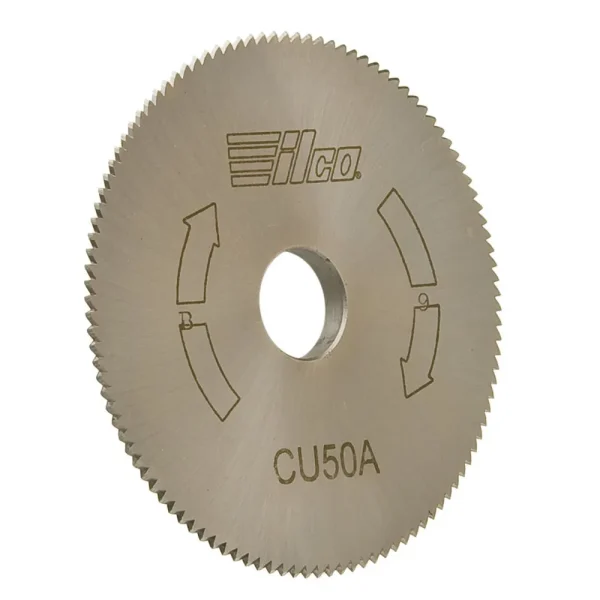

The Ilco CU50A Milling Cutter Wheel (BC0123XXXX) is a vital component for any locksmith or key cutting professional. This high-quality blade is designed for precision key duplication and is compatible with a range of popular key machines. Its robust construction and specialized coating ensure long-lasting performance and accurate cuts every time.
KEY FEATURES AND BENEFITS:
- Extended Blade Life: The Titanium Nitride (TiN) coating significantly increases the blade’s hardness and wear resistance, resulting in a longer lifespan and reduced need for replacements.
- Precise Key Cutting: Engineered for accurate and repeatable cuts, ensuring proper key function and minimizing errors.
- Versatile Compatibility: Works with multiple key machine models, making it a versatile and cost-effective solution.
- Durable Construction: Made from high-quality steel for strength and resistance to wear and tear.
SPECIFICATIONS:
- Manufacturer: Ilco
- Model Number: BC0123XXXX (CU50A)
- Material: Steel with Titanium Nitride (TiN) coating
- Diameter: 80mm
- Thickness: 5mm
- Center Hole Diameter: 16mm
- Compatibility: Ilco Bravo II, Ilco Bravo III (including EZ-Jaw), KD50A, KD71A, KD50C, Silca Bravo II, Silca Bravo III
HOW TO USE:
- Safety First: Always disconnect the key machine from the power source before changing the cutter blade. Wear appropriate safety glasses.
- Access the Cutter: Consult your key machine’s manual for instructions on accessing the cutter blade. This usually involves removing a cover or guard.
- Remove the Old Blade: Carefully loosen and remove the bolt or screw holding the old cutter blade in place. Note the orientation of the blade for proper installation of the new one.
- Install the New Blade: Align the new CU50A blade with the shaft and secure it with the bolt/screw. Ensure it’s tightened to the manufacturer’s recommended torque.
- Reassemble: Replace any covers or guards that were removed.
- Test Cut: Make a test cut on a scrap key blank to verify the blade is installed correctly and cutting accurately. Adjust as needed according to your key machine’s instructions.
BENEFITS OF USING THE ILCO CU50A MILLING CUTTER WHEEL (BC0123XXXX):
- Increased Productivity: Fewer blade changes mean less downtime and more keys cut.
- Cost Savings: The extended blade life reduces the expense of frequent replacements.
- Improved Key Quality: Precise cuts result in keys that function smoothly and reliably.
- Enhanced Safety: Proper installation and use minimize the risk of accidents.
FEATURES:
- Precision ground cutting edges: for clean, accurate cuts.
- Titanium Nitride coating: to reduce friction and heat buildup.
- Optimized cutting geometry: for efficient material removal.
- Designed for smooth operation: and minimal vibration.
- Rigorous quality control: to ensure consistent performance.
