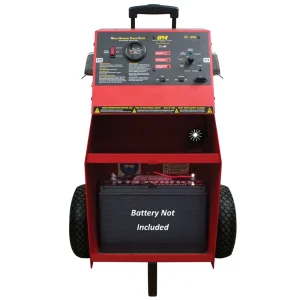

Innovative Products of America 9007M Mobile Smart MUTT PRO Edition (7-Way Round Pin)
Test all trailer electrical systems in a fraction of the time while reducing guesswork that could lead to expensive road calls and citations
ELECTRICAL TESTING (12/24V OPERATION)
- Power lights and electric brakes: manually, all-on, auto scan, or by remote control from over 200 ft. away
- Audible and visual alerts: cross, open, overloaded and short circuit indication
- Trailer wiring and circuit testing
- Diagnostic Pulsar® mode allows safe overloaded/short circuit repair
- Amperage readout and range (-/+ 20 amp range)
- Ground failure detection differentiates between wire and chassis ground
- Remote control allows for one-man testing
REMOTE CONTROL
- 12-button and (2x) 3-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
- Sync multiple (12) remotes to one unit

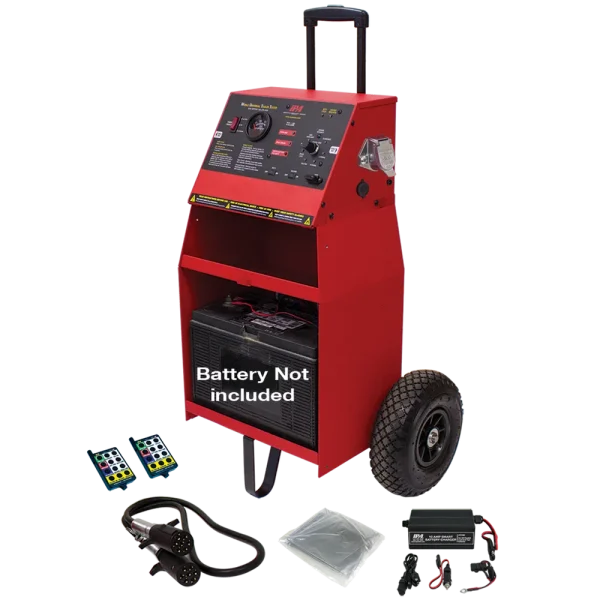

Includes:

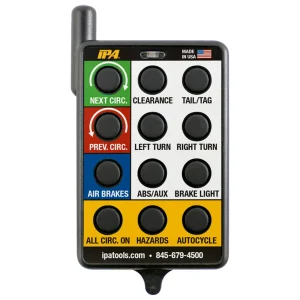

- (2x) 12-Button Remote Control (#MUT-RM12)
- 5′ 7-Way Cable (#7900K-1)
- 10-Amp Smart Battery Charger (#KCHG-121001)

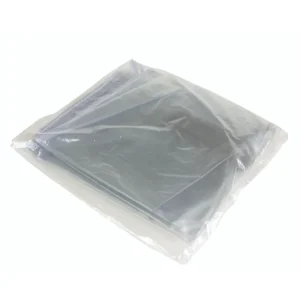

- Rain Cover (#CVR-0001)
Specifications:
- Connection Type: 7-Way Round Pin
- Power Input: 12/24V DC
- Battery Requirements: Group 31 or Similar (Battery Not Included)
- Source Output: 20A @ 12/24V DC
- Controls: Manual, Remote, Automatic
- Material: Powder-Coated Steel
- Weight: 40 lbs.
- Dimensions: 14″ L x 10″ W x 28″ H
- Warranty: 3-Year Limited Warranty
- CoO: USA
