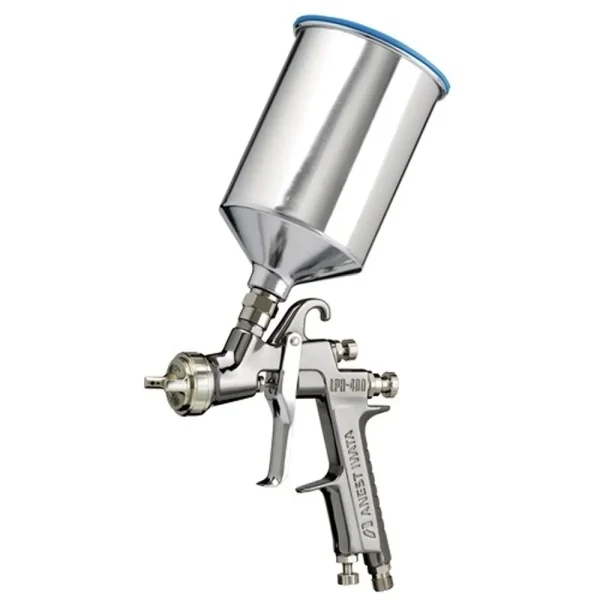

Iwata 5573 LPH400-184LV Spray Gun with Cup (PCG10EM)

Iwata 5573 LPH400-184LV Spray Gun with Cup (PCG10EM)

LPH400-184LV Spray Gun with PCG10EM 1000mL Aluminum Cup. High performance center post gravity feed HVLP spray gun with low air consumption and superior atomization utilizing our LV technology and our tulip inspired spray pattern. The gravity-feed design provides for easy clean up and reduces material waste.

• Type of feed: Gravity
• Nozzle orifice, dia mm (in): 1.8 (0.071)
• Atomizing air pressure bar (PSI): 1.1 (16)
• Air pressure inside air cap bar (PSI): 0.7 (10)
• Fluid output ml/min: 190
• Air consumption l/min (cfm): 270 (9.5)
• Weight g (lbs): 380 (0.84)
• Pattern width mm (in): 320 (12.6)
