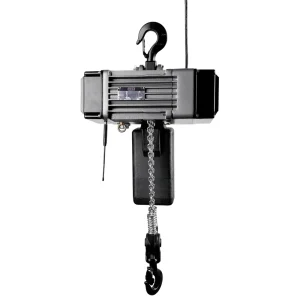

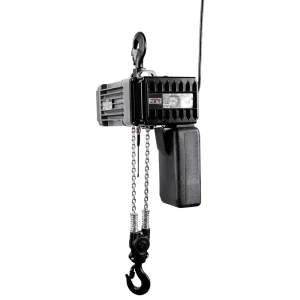

The Jet 1SS-3C-50 Prewired 460V 3PH 1-Ton Hoist w/ 50′ Lift (135000) is a reliable and powerful lifting solution designed for industrial applications. With a 1-ton capacity and a 50-foot lift height, this hoist is ideal for handling heavy loads with precision and ease.
KEY FEATURES AND BENEFITS:
- Powerful and efficient: The 2-1/7 HP motor swiftly lifts loads up to 2200 pounds.
- Safe operation: Equipped with upper and lower limit switches, thermal overload protection, and a slip clutch to prevent overloading.
- Durable construction: All-steel construction with a durable powder coat finish for long-lasting performance.

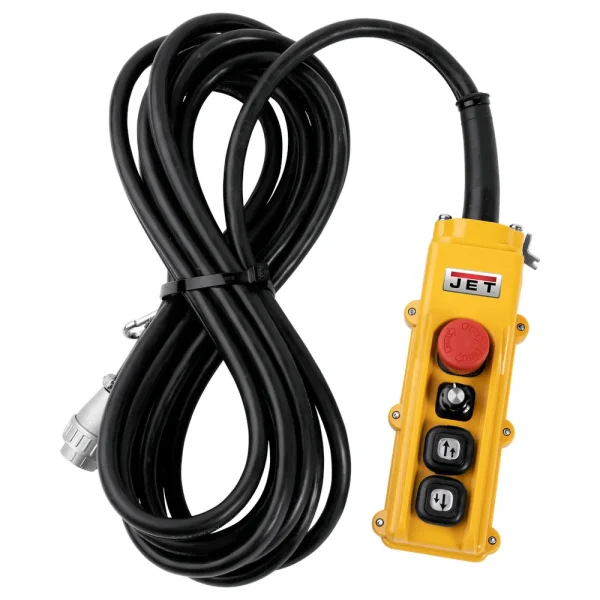

- Easy to use: 24-volt push-button controller with cable strain relief for convenient operation.
SPECIFICATIONS:
- Capacity: 1 ton (2200 lbs)
- Lift height: 50 ft
- Motor: 2-1/7 HP, 460V, 3-phase
- Duty cycle: 30%
- Lifting speed: 24 FPM
- Weight: 223 lbs
- Headroom: 24-7/16 in
- Width: 11.81 in
- Motor current: 12 amps
HOW TO USE:
- Inspect the hoist: Check for any damage before use.
- Ensure mounting: Securely mount the hoist to a suitable overhead structure.
- Connect to power: Connect the hoist to a properly grounded power supply.
- Attach load: Securely attach the load chain to the load.
- Operate controls: Use the up and down buttons on the control pendant to raise or lower the load.
- Monitor load: Continuously observe the load during lifting and lowering.
- Lower load: Once the load is in the desired position, lower it carefully.
- Disconnect power: Unplug the hoist from the power supply after use.
BENEFITS OF USING JET 1SS-3C-50 PREWIRED 460V 3PH 1-TON HOIST W/ 50′ LIFT (135000):
- Increased productivity and efficiency: Enhances lifting tasks performance.
- Improved worker safety: Features built-in safety mechanisms.
- Reduced manual labor: Minimizes strain and effort required from employees.
- Versatile: Suitable for various industrial applications.
- Durable construction: Ensures long-term use and reliability.
FEATURES:
- All-steel construction: Provides durability and strength.
- Sealed gear train: Allows for maintenance-free operation.
- Grade 80 load chain: Offers strength and reliability.
- NEMA 4X compliant push-button control pendants: Designed for harsh environments.
- Thermal overload protection: Prevents motor damage from overheating.
