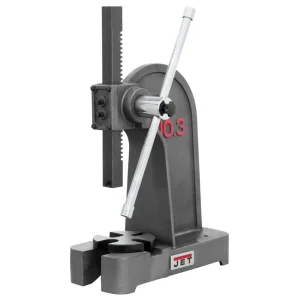

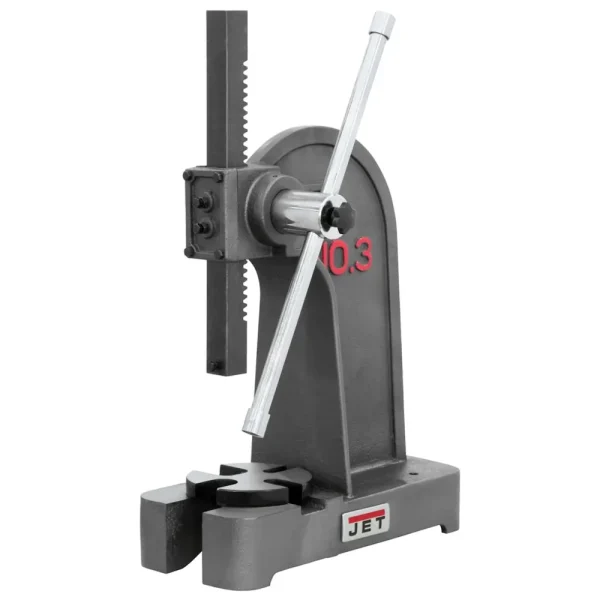

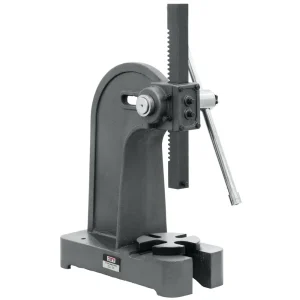

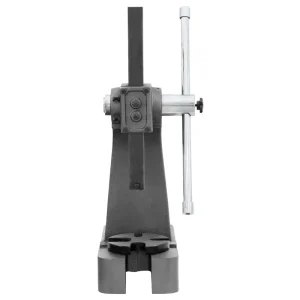

The Jet AP2-M 2-Ton Arbor Press (333620) is a robust and reliable tool designed for efficient production and assembly processes. Constructed from heavy-duty ductile iron, this arbor press offers exceptional strength and stability for demanding tasks.
KEY FEATURES AND BENEFITS:
- Solid Construction: The heavy-duty ductile iron frame ensures durability and longevity.
- Precision Machined Components: Accurately machined parts guarantee precise operation and performance.
- Powerful Pressing Force: With a 2-ton capacity, this arbor press handles a wide range of applications.
- Versatile Design: Flat and parallel tables, along with slotted table plates, accommodate various workpiece sizes.
- Easy Operation: Smooth-running steel rams and pinions provide effortless pressing action.
SPECIFICATIONS:
- Capacity: 2 tons (4000 lbs)
- Bore: 1/2 inch
- Overall Dimensions: 15-3/4 x 10 x 17-1/2 inches
- Capacity Over Table: 7-1/2 inches
- Anvil Diameter: 6-11/16 inches
- Ram Size: 1-1/4 x 13 inches
- Diameter of Work: 10-3/4 inches
- Arbor Press Height: 16-1/4 inches
- Base Size: 6-3/8 x 15-3/4 inches
- Ram Bore: 1/2 inch
- Travel of Ram: 9 inches
- Weight: 61 lbs
HOW TO USE:
- Secure the arbor press to a stable work surface.
- Position the workpiece on the table or between the table and anvil, depending on the task.
- Engage the ram by turning the handle clockwise.
- Apply pressure gradually until the desired result is achieved.
- Release the pressure by turning the handle counterclockwise.
BENEFITS OF USING Jet AP2-M 2-Ton Arbor Press (333620):
- Increased productivity: Efficiently handle various pressing tasks.
- Improved accuracy: Precision-machined components ensure precise results.
- Enhanced safety: Sturdy construction and reliable operation minimize risks.
- Cost-effective: Durable build and long lifespan provide excellent value.
FEATURES:
- Heavy-duty ductile iron construction
- Precision machined base, ram housing, framework, and bottom plate
- Steel rams and pinions
- Flat and parallel tables and slotted table plates
- Anvil included
