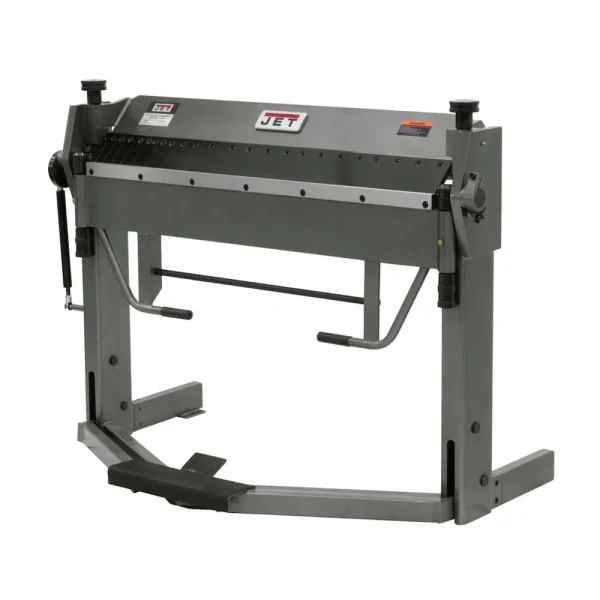

The Jet BPF-1450 50 In. x 14 Gauge Box and Pan Brake Foot Clamp (752127) is a heavy-duty 50-inch box and pan brake designed for precise metal forming and bending in workshops and fabrication facilities.
KEY FEATURES AND BENEFITS:
Superior Strength and Durability: Constructed with welded steel plate, heavy truss rods, and braces, this brake can handle demanding metalworking tasks.
Versatility for Various Bends: A wide assortment of 12 fingers in different widths allows you to create a variety of box and pan shapes in sheet metal.
Effortless Operation: The foot-operated material clamping reduces strain and fatigue, while the air spring assists with raising the clamping handle for smooth operation.
Accurate and Consistent Bends: The stop rod ensures consistent bending angles for repeatable results.
Rust-Resistant Fingers: Black ceramic coated fingers provide excellent protection against rust, extending their lifespan.
Large Bending Capacity: This brake can bend up to 14-gauge mild steel with a maximum bending length of 50 inches.
SPECIFICATIONS:
Brand: Jet
Model Number: BPF-1450 (752127)
Material Capacity: 14-gauge mild steel
Bending Length Capacity: 50 inches
Maximum Box Depth: 2-1/2 inches
Finger Nose Angle: 42 degrees
Foot Clamp: Yes
Overall Dimensions (Assembled): 63 x 38 x 45 inches (L x W x H)
Overall Dimensions (Shipping): 67 x 28 x 50 inches (L x W x H)
Weight: 900 lbs
Warranty: 2-year limited warranty
HOW TO USE:
Preparation: Measure and cut your sheet metal to the desired size. Ensure the work surface of the brake is clean and free of debris.
Select Finger: Choose the appropriate finger width based on the desired bend radius and sheet metal thickness.
Position Sheet Metal: Place the sheet metal on the brake bed, aligning it with the desired bend line and chosen finger.
Clamp Material: Secure the sheet metal firmly using the foot clamp.
Adjust Bending Depth (Optional): If needed, adjust the stop rod to set the desired bending depth.
Bending: Slowly operate the clamping handle to bend the sheet metal to the desired angle.
BENEFITS OF USING Jet BPF-1450 50 In. x 14 Gauge Box and Pan Brake Foot Clamp (752127):
Creates precise and clean bends in sheet metal.
Reduces operator fatigue with foot-operated clamping and air spring assist.
Offers versatility for various box and pan shapes with multiple finger widths.
Ensures consistent bending results with the stop rod.
Durable steel construction for long-lasting use.
FEATURES:
Welded steel plate construction for strength
Foot-operated material clamping
Air spring assist for raising clamping handle
Wide assortment of fingers for different bend shapes
