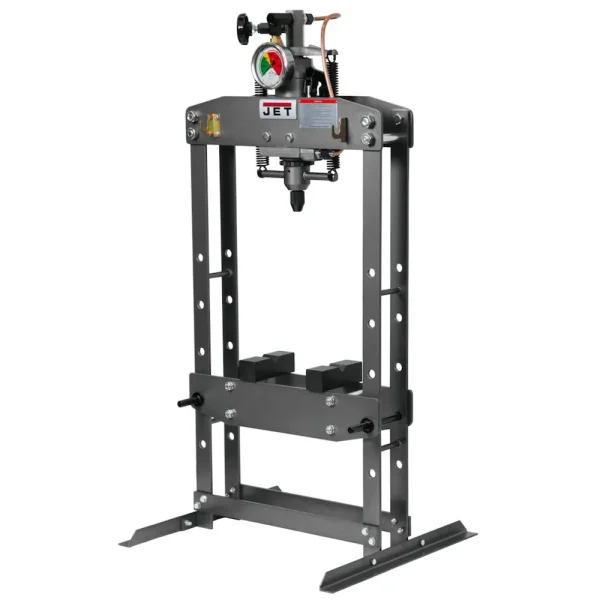

Jet HP-5A 5-Ton Hydraulic Press (331406) is a robust, industrial-grade tool designed for pressing, bending, and straightening applications. Built with heavy-duty steel and equipped with industrial-grade hydraulics, this press delivers reliable performance and durability.
KEY FEATURES AND BENEFITS:
- 5-ton capacity: Handles a wide range of tasks with ease.
- Heavy-duty steel construction: Ensures long-lasting durability and stability.
- Industrial-grade hydraulics: Provides smooth and powerful operation.
- Open side frames: Accommodates long materials for versatile use.
- Fast setup ram extension screw: Increases efficiency and productivity.
SPECIFICATIONS:
- Capacity: 5 tons
- Ram diameter: 1-3/4 inches
- Piston stroke: 4 inches
- Screw stroke: 3 inches
- Work table size: 19 x 5-1/2 inches
- Vertical table travel: 15-3/4 inches
- Overall dimensions: 23.5 x 26 x 51.5 inches
- Weight: 192 lbs
HOW TO USE:
- Safety First: Always wear appropriate safety gear, including protective eyewear and gloves.
- Preparation: Ensure the work area is clean and stable. Place the press on a solid, level surface.
- Assembly: Attach the included bed plates and pump handles to the press.
- Operation: Fill the hydraulic system with the recommended fluid. Use the hand pump to generate pressure and operate the ram.
- Material Placement: Position the material to be pressed or bent between the ram and the work table.
- Pressing or Bending: Slowly apply pressure using the hand pump. Monitor the pressure gauge to avoid exceeding the press’s capacity.
- Release: Once the desired result is achieved, carefully release the pressure and remove the material.
BENEFITS OF USING Jet HP-5A 5-Ton Hydraulic Press (331406):
- Increased efficiency: The press’s powerful hydraulic system and fast setup features enhance productivity.
- Versatility: Handles a wide range of pressing, bending, and straightening tasks.
- Durability: Built with heavy-duty steel for long-lasting performance.
- Precision: The pressure gauge allows for accurate control over the applied force.
- Safety: Industrial-grade construction and design prioritize user safety.
FEATURES:
- Hand-operated with pressure gauge
- Open side frames for long materials
- Fast setup ram extension screw
- Two bed plates and pump handles
