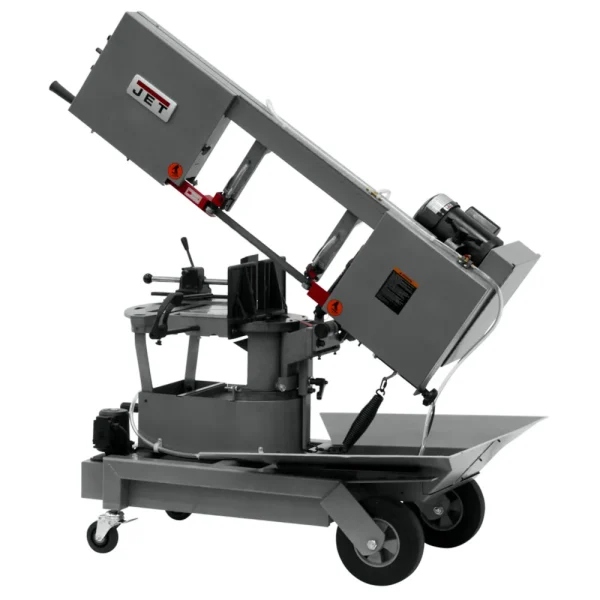

The Jet HVBS-10-DMWC 1PH 1HP 115V Dual Miter Portable Bandsaw (424465) is a versatile and portable solution for your metal cutting needs. Its unique head design allows for quick and precise miter cuts in both left and right directions, at angles up to 45 degrees. With the ability to convert between horizontal and vertical positions, the HVBS-10-DMWC tackles a wide variety of cutting tasks.
KEY FEATURES AND BENEFITS:
- Dual Mitering Head: Achieve accurate angle cuts quickly and easily, with miters up to 45 degrees left and right.

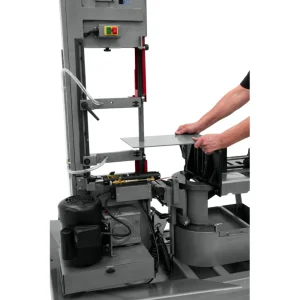

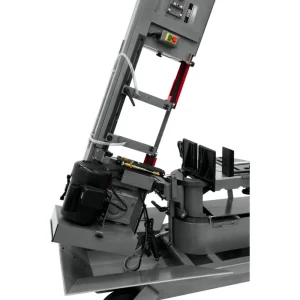

- Horizontal & Vertical Positions: Easily switch between positions for cutting flat stock or tubing.
- Hydraulic Downfeed Control: Adjustable downfeed ensures smooth and controlled cuts in various materials.
- Coolant System: Extends blade life and reduces chip buildup for cleaner cuts.
- Automatic Shutoff: Enhances safety by stopping the blade automatically after the cut.
- Portable Design: Built-in wheels allow for easy maneuvering around your workspace.
- Large Capacity: Cuts materials up to 10″ x 13″ (rectangular) and 10″ diameter (round) vertically.
- Durable Construction: Built to withstand demanding workshop use.
SPECIFICATIONS:
- Blade Size: 1 x 0.035 x 120 inches
- Blade Speed: 64, 132, 247 SFPM
- Blade Wheel Diameter: 11 23/32 inches
- Head Movement: +/- 45 degrees
- Motor: 1 HP, 115V, single phase
- Weight: 558 lbs
- Overall Dimensions: 72 x 34.5 x 46 inches
HOW TO USE:
- Assembly: Following the included instructions, assemble the bandsaw base, table, and other components.
- Blade Installation: Install the desired bi-metal bandsaw blade according to the manufacturer’s instructions, ensuring proper tension.
- Material Setup: Secure your material in the vise or on the cutting table using clamps.
- Adjustments: Set the blade speed and downfeed pressure according to the material thickness and desired cutting speed.
- Cutting: Power on the saw and guide the material steadily against the blade for a clean cut. Utilize the miter gauge for angled cuts.
- Shut Down: Once finished, power off the saw and allow the blade to come to a complete stop before cleaning and storing.
BENEFITS OF USING Jet HVBS-10-DMWC 1PH 1HP 115V Dual Miter Portable Bandsaw (424465):
- Versatility: Handles various cutting tasks with horizontal and vertical cutting capabilities, miter cuts, and a large cutting capacity.
- Precision: Delivers accurate cuts with a mitering head, adjustable downfeed, and protractor for angle measurement.
- Efficiency: Coolant system and automatic shutoff enhance blade life and operator safety.
- Portability: Wheels allow for easy movement around the workshop.
- Durability: Built to last with a solid construction for demanding use.
FEATURES:
- Built-in self-propelled blade brush for chip removal.
- Hydraulic cylinder controls head pressure.
- Power switch with safety key to prevent accidental startup.
- Meets CSA/CUS safety standards.
- Fully guarded blade for operator safety.
- Adjustable vise for secure material holding.
- Large 16″ x 10″ vertical cutting table.
- Removable chip drawer for easy cleanup.
