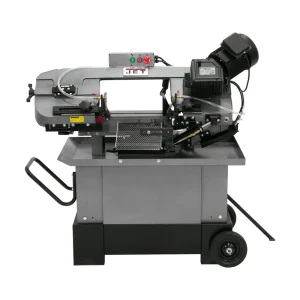

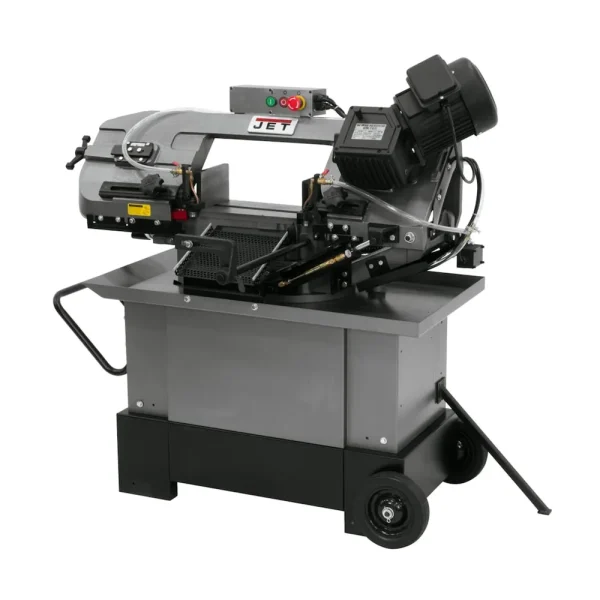

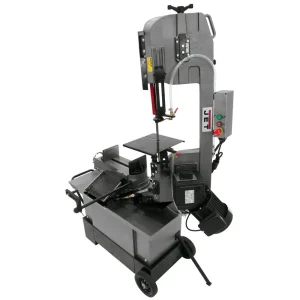

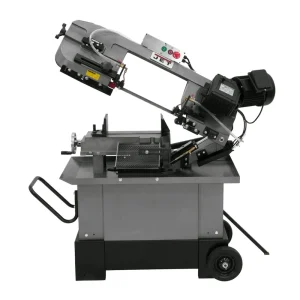

Jet HVBS-710G 7×10.5″ Mitering Geared Head Bandsaw (413452)

The Jet HVBS-710G 7×10.5″ Mitering Geared Head Bandsaw (413452) is a high-performance metal cutting saw designed for precision and durability, featuring a unique swiveling head for accurate miter cuts without repositioning your workpiece.

KEY FEATURES AND BENEFITS:

• Swiveling Head: Achieve precise miter cuts at various angles without moving the material.
• Variable Speed Control: Adjust the blade speed (145, 208, 255 SFPM) to match the material you’re cutting for optimal results.
• Built-in Coolant System: Extends blade life and reduces chip buildup for cleaner cuts.
• Heavy-Duty Construction: Cast iron saw bow and bed ensure stability and vibration dampening during operation.
• Durable Gearbox: Delivers reliable power transfer for smooth cutting.
• Large Capacity: Cuts materials up to 7″ x 10.5″ rectangular and 7″ round at 90 degrees.
• Quick-Lock Vise: Securely holds your workpiece for safe and efficient cutting.
• Adjustable Material Stop: Ensures consistent cut lengths.
• Self-Propelled Blade Brush: Keeps the blade free of chips for improved performance and blade life.
• Two-Year Warranty: Provides peace of mind with reliable after-sales support.

SPECIFICATIONS:

• Motor: 1 HP, 115/230V, 1Ph (prewired for 115V)
• Cutting Capacity: 7″ x 10-1/2″ (rectangular at 90 degrees)
• Blade Size: 3/4″ x .035″ x 93 5/8″
• Blade Speeds: 145, 208, 255 SFPM
• Overall Dimensions: 51″ x 22.5″ x 43″
• Weight: 396 lbs

HOW TO USE:

1. Set Up: Secure the bandsaw to a stable workbench and ensure proper electrical connection. Install the desired bi-metal blade according to the manufacturer’s instructions.
2. Adjusting the Saw: Set the swivel head to the desired cutting angle (0° for straight cuts). Adjust the blade tension and table height for optimal cutting performance based on the material thickness.
3. Securing the Material: Clamp your workpiece securely in the vise, ensuring proper alignment with the blade. Utilize the adjustable material stop for repetitive cuts.
4. Cutting: Power on the bandsaw and allow the blade to reach full speed. Guide the material steadily against the blade to achieve the desired cut. Utilize the coolant system for extended cutting sessions.
5. Shutting Down: Once finished cutting, power off the saw and allow the blade to come to a complete stop before disengaging the material.

BENEFITS OF USING Jet HVBS-710G 7×10.5″ Mitering Geared Head Bandsaw (413452):

• Precise Mitering: Achieve clean and accurate angled cuts (0° to 45°) without repositioning your material.
• Versatility: Cut a wide range of metal materials with variable speed control and large cutting capacity.
• Durable Construction: Built to last with heavy-duty cast iron components for demanding workshop use.
• Efficient Cutting: Coolant system and self-propelled blade brush minimize downtime and improve blade life.
• User-Friendly Features: Quick-lock vise, adjustable material stop, and easy blade changes enhance workflow.

FEATURES:

• Swiveling head for miter cuts (0° to 45°)
• Variable speed control (145, 208, 255 SFPM)
• Built-in coolant system
• Heavy-duty cast iron construction
• Durable gearbox
• Large cutting capacity (7″ x 10.5″ rectangular, 7″ round at 90°)
• Quick-lock vise
• Adjustable material stop
• Self-propelled blade brush
• Two-year warranty
