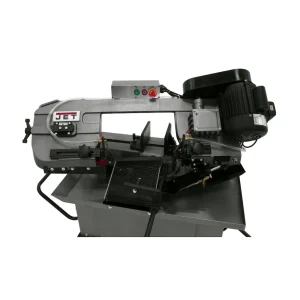

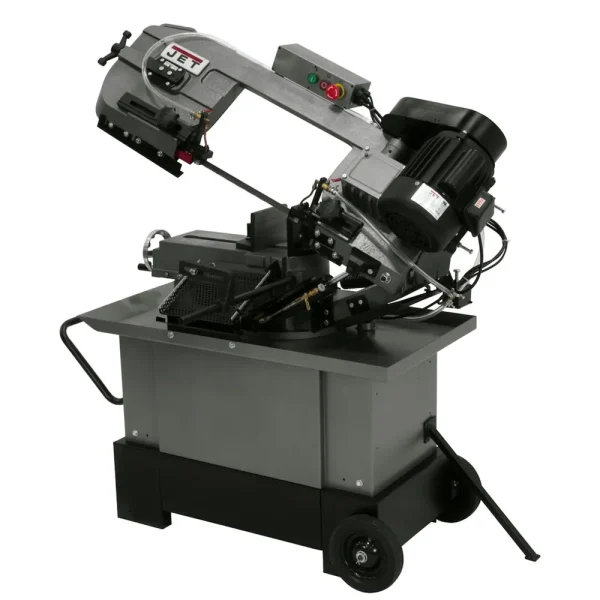

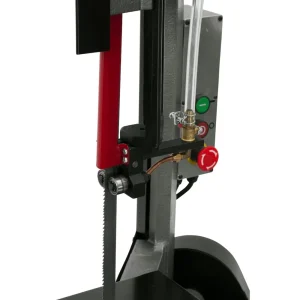

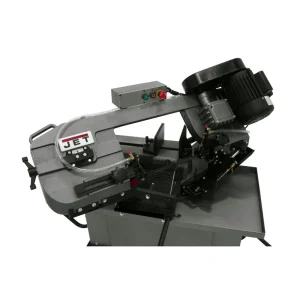

The Jet HVBS-710S 1PH 115/230V 7×10.5″ Hori/Vert Mitering Bandsaw (413451) is a robust bandsaw designed for both horizontal and vertical cutting tasks, offering precision and versatility in metalworking applications.
KEY FEATURES AND BENEFITS:
- Mitering head: Swivels for horizontal & vertical cuts (up to 45°) on stationary material for precision.
- Hydraulic downfeed: Ensures smooth, controlled cuts for clean results.
- Heavy-duty cast iron construction: Provides stability and reduces vibration.
- Automatic shut-off: Enhances safety after completing cuts.
- Coolant system: Extends blade life and improves cutting performance.
SPECIFICATIONS:
- Motor: 1 HP, 115/230V
- Capacity (Rectangle – 90°): 7″ x 10.5″
- Blade size: 3/4″ x .035″ x 93 5/8 TPI
- Blade speeds: 86, 131, 182, 260 SFPM
- Overall dimensions: 51″ x 22.5″ x 44″
- Weight: 396 lbs
HOW TO USE:
- Secure workpiece: Clamp material firmly in the quick-lock vise or on the table.
- Adjust settings: Select the desired blade speed and adjust the downfeed pressure for the material thickness.
- Position the head: Swivel the head for horizontal or vertical cutting and set the miter angle if needed.
- Power on and engage feed: Turn on the saw and slowly activate the hydraulic downfeed to begin cutting.
- Maintain control: Guide the material steadily through the blade for a clean cut.
- Power off: Once finished, turn off the saw and allow the blade to stop completely before raising the downfeed arm.
BENEFITS OF USING Jet HVBS-710S 1PH 115/230V 7×10.5″ Hori/Vert Mitering Bandsaw (413451):
- Versatility: Handles various metal cutting tasks, including tubes, pipes, and solid stock.
- Precision cutting: Delivers accurate miters and crosscuts with the swiveling head.
- Efficiency: Hydraulic downfeed provides smooth control for effortless cutting.
- Durability: Cast iron construction ensures long-lasting performance.
- Safety: Automatic shut-off and coolant system enhance user safety and blade life.
FEATURES:
- Swiveling head for horizontal/vertical mitering
- Hydraulic downfeed system
- Heavy-duty cast iron construction
- Bi-metal blade included
- Coolant system
- Quick-lock vise
- Adjustable material stop
- Large wheels for easy mobility
