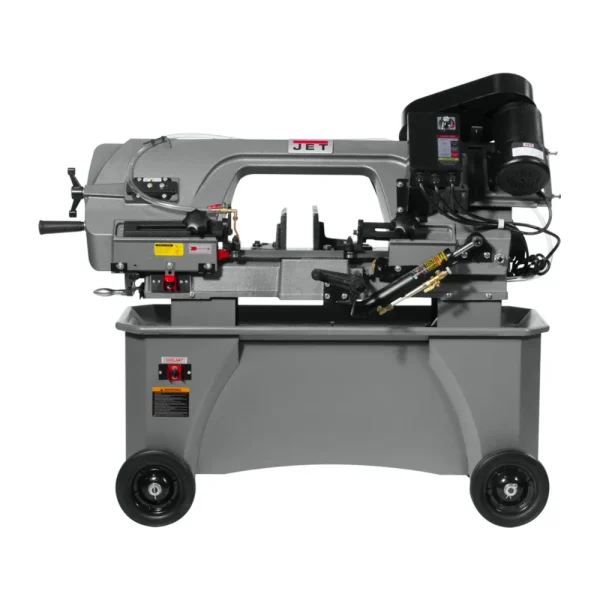

Jet HVBS712V 7×12″ Variable Speed Horizontal/Vertical Bandsaw (415559) is a versatile and powerful metalworking tool designed for precise cutting in both horizontal and vertical orientations.
KEY FEATURES AND BENEFITS:
Increased Output & Operator Safety: Designed to maximize productivity while prioritizing user safety.

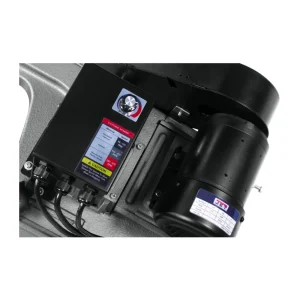

Powerful & Efficient Motor: 1 HP DC motor delivers high torque for efficient cutting and consumes less energy.
Variable Speed Control: Adjust blade speed (88-270 SFPM) to match the material for optimal results.
Durable Construction: Cast iron bow and bed ensure long-lasting stability and precision.
Large Cutting Capacity: Handles materials up to 7″ x 12″ (height x width).
Automatic Shut-Off: Enhances safety by stopping the saw after completing a cut.
Enhanced Blade Management: Blade tensioning system and multi-position blade guides for accurate cuts.
User-Friendly Features:

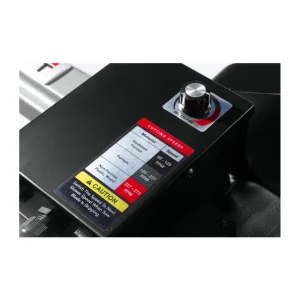

Effortless speed adjustments via knob, eliminating belt changes.
Quick-change vise with 45° swivel for angled cuts (tool-less).
Hydraulic downfeed for smooth and effortless cutting.
Four 8″ rubber wheels for easy maneuverability.

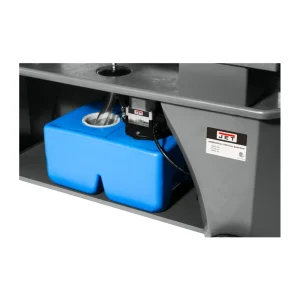

Built-in storage cabinet and chip tray for organization.
Safety Compliance: CSA/US certified and UL listed switches.
SPECIFICATIONS:
Model Number: HVBS712V
Blade Speeds: 88 – 270 SFPM
Blade Wheel Diameter: 11-3/4″
Motor: 7.5 Amp, 3500 RPM DC motor
Net Weight: 368 lbs.
Overall Dimensions (L x W x H): 48 x 17 x 40 in.
Cutting Capacities (at 90 degrees):
Round: 7 in.
Square: 7 x 7 in.
Rectangle: Up to 1 x 12 in. (H x W)
Cutting Capacities (at 45 degrees):
Round: 4-1/2 in.
Square: 4-1/2 x 4-1/2 in.
Rectangle: Up to 6-1/2 x 4-1/2 in. (H x W)
Vise Swivel Angle: 45 degrees
Vertical Worktable: 9″ x 12″
HOW TO USE:
Assembly: Refer to the user manual for detailed assembly instructions. Ensure the saw is on a level and stable surface.
Blade Installation: Install the appropriate bi-metal band saw blade based on the material you intend to cut. Ensure proper tension and alignment following the user manual’s instructions.
Material Setup: Secure the material using the vise or clamps on the worktable. Adjust the material stop for repetitive cuts.
Adjustments: Select the desired cutting speed based on the material using the speed control knob.
Operation: Power on the saw and allow the blade to reach full speed. Guide the material against the blade for cutting. Utilize the hydraulic downfeed for controlled cutting pressure.
Power Off: Once the cut is complete, turn off the saw and allow the blade to stop completely before disengaging the material.
BENEFITS OF USING Jet HVBS712V 7×12″ Variable Speed Horizontal/Vertical Bandsaw (415559):
Versatility: Perform both horizontal and vertical metal cutting applications with a single machine.
Precision Cutting: Achieve clean and accurate cuts with variable speed control and a sturdy build.
Efficiency: Powerful motor and user-friendly features allow for faster completion of cutting tasks.
Durability: Cast iron construction ensures long-lasting performance in demanding environments.
Safety: Automatic shut-off and safety compliance features promote a safe working environment.
FEATURES:
Variable speed control (88-270 SFPM)
1 HP DC motor for high torque and energy efficiency
Sealed hardened and ground gear drive
Heavy-duty cast iron bow and bed
Large capacity (7″ x 12″)
Blade tensioning system and multi-position blade guides
