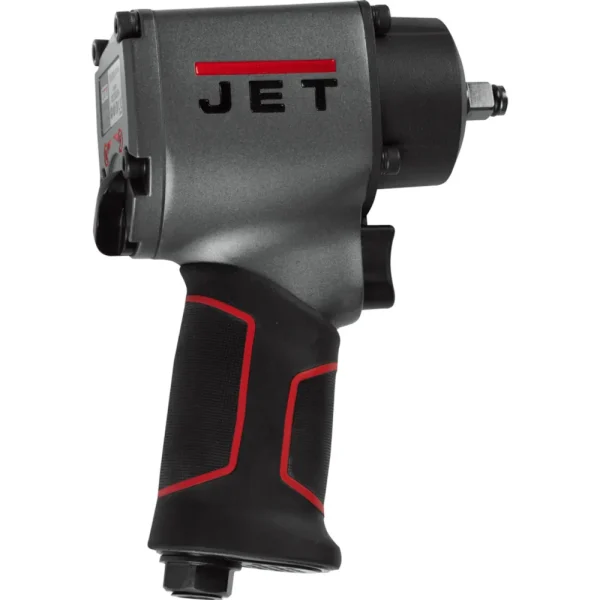

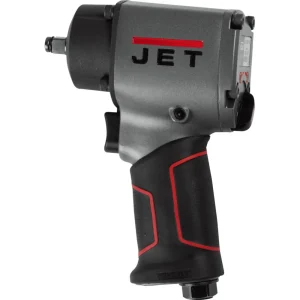

The Jet JAT-106 3/8 Inch Compact Impact Wrench (505106) is a powerful yet portable tool designed for professionals. Built to withstand daily, heavy-duty use, it offers a balance of performance and comfort.
KEY FEATURES AND BENEFITS:
- Twin Hammer Impact Mechanism: Provides consistent and powerful performance for efficient fastening and removal.
- Compact Design: At 4-5/7 inches long, it easily accesses tight spaces, making it ideal for various applications.
- Ergonomic Grip: Reduces hand fatigue and vibration, ensuring comfortable use during extended periods.
- Lightweight Aluminum Construction: Improves tool maneuverability and reduces user fatigue.
- 3-Position Power Settings: Offers adjustable power to match different fastening requirements.
SPECIFICATIONS:
- Square Drive: 3/8 inch
- Working Torque: 25-350 ft-lbs
- Max Torque: 500 ft-lbs
- Free Speed: 10,000 RPM
- Blows Per Minute: 1,500 BPM
- Air Consumption: 5 CFM
- Air Inlet: 1/4 inch NPT
- Air Hose Size: 3/8 inch
- Overall Length: 4-2/7 inches
- Weight: 3-1/5 lbs
- Sound Pressure: 98 dB(A)
- Sound Power: 87 dB(A)
- Vibration Value: 4.9 m/s²
HOW TO USE:
- Connect the air hose to the 1/4 inch NPT air inlet of the impact wrench.
- Ensure the tool is securely fastened to the air compressor.
- Set the desired power level using the 3-position power selector.
- Position the impact socket onto the fastener.
- Pull the trigger to activate the tool. For reverse, pull the trigger again.
- Once the fastener is tightened or loosened, release the trigger.
BENEFITS OF USING JET JAT-106 3/8 INCH COMPACT IMPACT WRENCH (505106):
- Increased efficiency due to powerful performance and compact design.
- Reduced user fatigue through ergonomic grip and lightweight construction.
- Versatility with adjustable power settings to handle various tasks.
- Durability built for heavy-duty use in demanding environments.
FEATURES:
- Twin Hammer impact mechanism
- Compact design
- Ergonomic grip
- Lightweight aluminum construction
- 3-position power settings
- 500 ft-lbs of maximum torque
