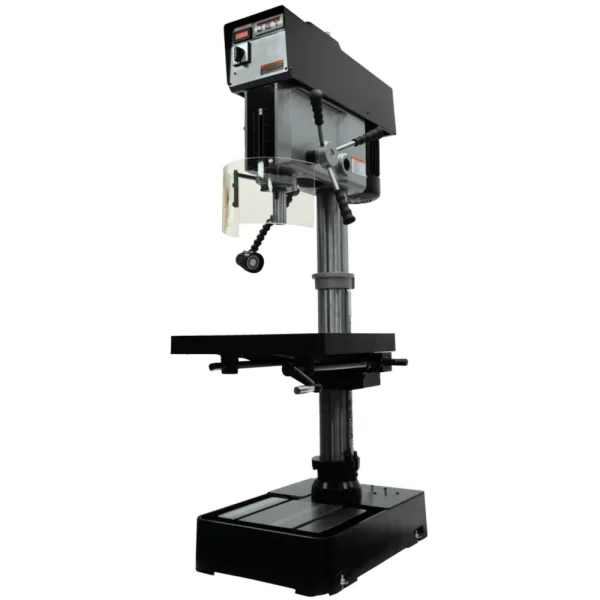

The Jet JDP-20VS-1 2HP 115/230V 1PH 1-1/4 Drilling Capacity (354230) is a powerful and versatile tool designed for professional workshops and industrial settings. Its robust construction and advanced features ensure precision, accuracy, and efficiency in a wide range of drilling tasks.
KEY FEATURES AND BENEFITS:
- Precision and Rigidity: The massively constructed head and steel column provide exceptional rigidity, minimizing vibrations and ensuring accurate drilling even under heavy loads.
- Variable Speed Control: The variable speed spindle, ranging from 300 to 2,000 RPM, allows you to select the optimal speed for different materials and drill bit sizes.
- Powerful Motor: The 2 HP motor delivers ample power for demanding drilling tasks in various materials, including cast iron and mild steel.
- Large Worktable: The precision-ground T-slotted table offers a spacious work area and easy adjustments for precise positioning of workpieces.
- Enhanced Visibility: The integrated LED work light illuminates the drilling area for better visibility and accuracy.
- Safety Features: The drill press includes a spindle guard and front-mounted positive control depth stop to ensure safe operation.
SPECIFICATIONS:
- Drilling Capacity: 1-1/4″ in cast iron, 1″ in mild steel
- Swing: 20″
- Spindle Speeds: 300 – 2,000 RPM
- Spindle Travel: 6″
- Table Size: 22″ x 18-3/4″
- Motor: 2 HP, 115/230V, 1Ph
- Overall Dimensions: 38.18″ L x 27.16″ W x 79.52″ H
- Weight: 780 lbs
HOW TO USE:
- Secure the workpiece: Ensure the workpiece is firmly clamped to the worktable to prevent movement during drilling.
- Select the speed: Choose the appropriate spindle speed based on the material and drill bit size. Refer to the speed chart in the manual.
- Adjust the depth stop: Set the depth stop to control the drilling depth and prevent over-drilling.
- Position the workpiece: Align the drilling location with the center of the spindle using the table adjustment handles.
- Start drilling: Turn on the drill press and gradually lower the spindle using the feed handle. Apply even pressure and avoid excessive force.
- Monitor the process: Observe the drilling process and adjust the speed or feed rate as needed.
- Complete the drilling: Continue drilling until the desired depth is reached.
- Retract the spindle: Raise the spindle and turn off the drill press.
- Unclamp the workpiece: Release the clamps and remove the workpiece from the table.
BENEFITS OF USING THE Jet JDP-20VS-1 2HP 115/230V 1PH 1-1/4 Drilling Capacity (354230):
- Increased productivity: The powerful motor and variable speed control allow for faster and more efficient drilling.
- Improved accuracy: The rigid construction and precise adjustments ensure accurate and consistent results.
- Versatility: The drill press can handle a wide range of drilling tasks in various materials.
- Safety: The safety features protect the operator and prevent damage to the workpiece.
FEATURES:
- Steel column
- Heavy-duty cast iron design
- Massively constructed head
- Large precision-ground T-slot production table
- Massive 3″ quill diameter
- CSA/CUS certified
- LED machine lamp
- Spindle guard
- Variable spindle speeds from 65 – 2,000 RPM
- Front-mounted LED spindle RPM readout
- Front-mounted positive control depth stop
- Table rotates 360° around the column
- Machine T-slotted base
- Large hand grips
