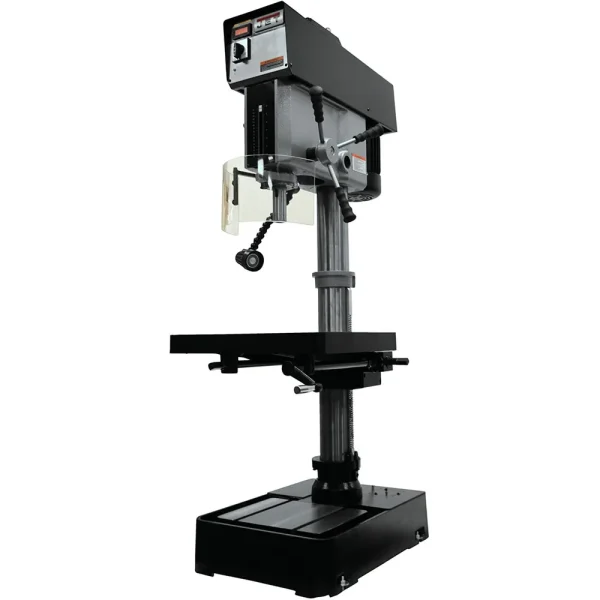

The Jet JDP-20VS-3 2 HP 3 PH 230/460V 20″ VS Drill Press (354231) is a workhorse designed for demanding industrial applications. Built with solid steel and cast iron, this drill press offers exceptional rigidity and accuracy for a wide range of drilling tasks. Whether you’re working with metal, wood, or other materials, the JDP-20VS-3’s powerful motor and variable speed capabilities ensure optimal performance.
KEY FEATURES AND BENEFITS:
- Solid Construction: Steel column and heavy-duty cast iron construction ensure stability and durability, minimizing vibration for precise drilling.
- Precision Engineering: Large precision-ground T-slot table and a massive 3″ quill diameter contribute to accurate and consistent results.
- Variable Speed: The 300-2000 RPM variable speed spindle allows you to adjust the drilling speed to match the material and bit size, ensuring optimal performance and minimizing wear and tear on your tools.
- Powerful Motor: The 2 HP, 3-phase motor delivers ample power to tackle even the toughest drilling tasks.
- User-Friendly Design: Large hand grips, front-mounted controls, and LED spindle RPM readout make operation easy and comfortable.
- Safety: CSA/CUS certified for compliance with strict safety and electrical standards.
- Additional Features: LED work light, spindle guard, 360° rotating table, and machine T-slotted base enhance functionality and versatility.
SPECIFICATIONS:
- Model Number: JDP-20VS-3
- Stock Number: JT9-354231
- Motor: 2 HP, 230/460V, 3-phase
- Drilling Capacity:
- Cast Iron: 1-1/2″
- Mild Steel: 1-3/8″
- Spindle Taper: MT-3
- Spindle Travel: 6″
- Table Size: 22″ x 18-3/4″
- Overall Dimensions: 38.18″L x 27.16″W x 79.52″H
- Weight: 780 lbs
HOW TO USE:
- Secure Workpiece: Firmly clamp your workpiece to the table using appropriate clamps or vises. Ensure proper alignment for accurate drilling.
- Select Drill Bit: Choose the correct drill bit for your material and desired hole size.
- Adjust Speed: Set the spindle speed according to the material and bit size. Refer to the speed chart in the user manual for guidance.
- Set Depth Stop: If required, adjust the depth stop to control the depth of the hole.
- Turn On: Switch on the drill press and wait for the spindle to reach the desired speed.
- Begin Drilling: Slowly lower the quill handle to feed the drill bit into the workpiece. Apply steady pressure and avoid forcing the bit.
- Retract and Clear Chips: Periodically lift the quill handle to clear chips and prevent overheating.
- Complete Drilling: Continue drilling until the desired depth is reached.
- Turn Off: Switch off the drill press and wait for the spindle to come to a complete stop before removing the workpiece.
BENEFITS OF USING Jet JDP-20VS-3 2 HP 3 PH 230/460V 20″ VS Drill Press (354231):
- Increased Productivity: Powerful motor and variable speed enable efficient drilling in various materials.
- Improved Accuracy: Rigid construction and precision engineering ensure precise hole placement and consistent results.
- Enhanced Safety: CSA/CUS certification and safety features like the spindle guard protect users from potential hazards.
- Versatility: 360° rotating table and T-slotted base offer flexibility for various drilling applications.
- Durability: Heavy-duty construction ensures long-lasting performance in demanding environments.
FEATURES:
- Front-mounted LED spindle RPM readout
- Large precision-ground T-Slot production table
- Massive 3″ quill diameter
- Table rotates 360° around the column
- Steel column and heavy-duty cast iron design
- CSA/CUS certified
- LED work light
- Spindle guard
- Machine T-slotted base
