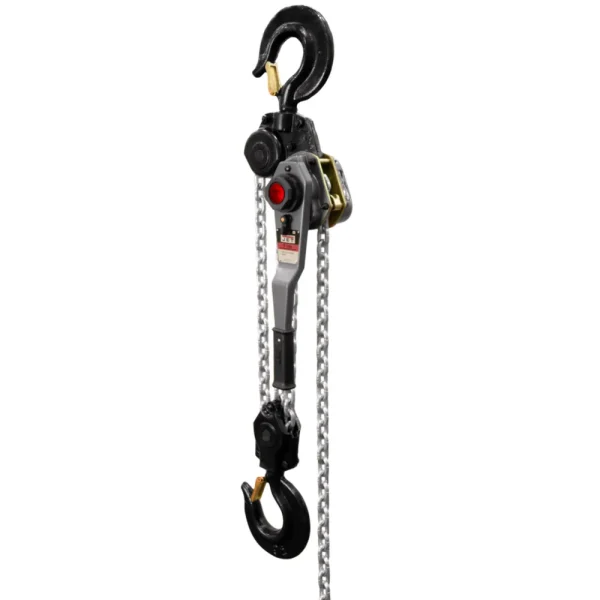

Jet JLH-900WO-5 9T Lever Hoist 5′ Lift w/Overload Protection (376700) is a professional-grade tool engineered for heavy-duty industrial lifting tasks. Designed with safety, durability, and versatility in mind, this lever hoist is the perfect solution for demanding lifting applications in a variety of settings.
KEY FEATURES AND BENEFITS:
- Safety First: Overload protection, fused brake system with lifetime warranty, double pawl brake design, and offset handle design ensure safe operation.
- Built to Last: Grade 100 load chain, heat-treated components, caged needle bearings, and all-steel construction guarantee durability in harsh environments.
- Versatile Performance: 360° rotating hooks, compact design, and compatibility with various lifting angles make it adaptable to diverse tasks.
- Compliant with Standards: Meets ANSI/ASME B30.21 and HST-3 standards, ensuring quality and safety.
SPECIFICATIONS:
- Load Capacity: 9 tons
- Lift: 5 feet
- Overload Protection: Yes
- Headroom: 26-4/5 inches
- Handle Length: 16-5/16 inches
- Lever Pull Force: 88 lbf
- Lift per Turn: 1/4 inch
- Number of Falls: 3
- Load Chain Dimensions: 10 x 28 mm
- Hook Throat Opening: 2-1/8 inches
- Overall Width: 11-3/4 inches
- Weight: 90 lbs
HOW TO USE:
- Inspection: Before each use, inspect the hoist for any damage or wear. Ensure all components are in good working order.
- Attachment: Securely attach the hoist to a stable anchor point using appropriate rigging hardware.
- Load Connection: Attach the load to the hoist hook, ensuring it is centered and balanced.
- Lifting: Engage the lever and pump it up and down to raise or lower the load. Use a slow, controlled motion.
- Lowering: Release the lever slowly to lower the load.
- Unloading: Once the load is safely on the ground, detach it from the hook.
- Storage: Store the hoist in a clean, dry place, away from moisture and corrosive substances.
BENEFITS OF USING Jet JLH-900WO-5 9T Lever Hoist 5′ Lift w/Overload Protection (376700):
- Enhanced safety with overload protection and fused brake system.
- Increased durability and longevity due to robust construction and high-quality materials.
- Improved efficiency and ease of use with ergonomic design and smooth operation.
- Versatile lifting capabilities for various applications and environments.
- Peace of mind with compliance to industry standards and a lifetime warranty on the brake.
FEATURES:
- Patented fused brake design
- Slip clutch overload protection
- Weston-style double pawl brake design
- Improved easy free chain system
- Advanced offset handle design
- Industrial-rated alloy steel hooks
- Grade 100 corrosive resistant plated load chain
- Cast-steel safety latches
- Heat-treated and case hardened internal parts
- Caged needle bearings
- Impact resistant all steel construction
