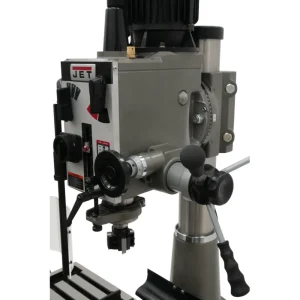

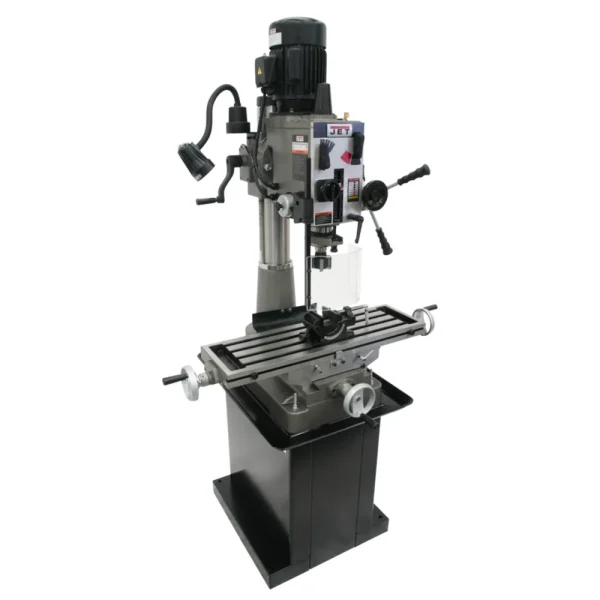

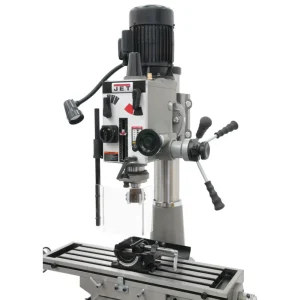

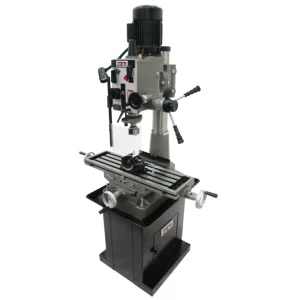

The Jet JMD-40GH Mill/Drill with Newall DP700 2-Axis DRO X-Powerfd (351141) is a versatile machine designed for both precision drilling and milling tasks. Its heavy-duty construction ensures stability and accuracy for demanding applications.
KEY FEATURES AND BENEFITS:
- Heavy-duty design: Built to handle tough drilling and milling jobs.
- 6-speed geared head: Delivers a wide range of spindle speeds for various materials.
- Newall DP700 2-Axis DRO: Provides precise digital readouts for accurate positioning.
- X-Powerfeed: Enables automated feed during drilling for consistent results.
- R8 spindle taper: Compatible with a wide variety of drilling and milling tooling.
- Tilting head: Allows for angled drilling and milling operations.
- Power downfeed (standard): Provides precise control during drilling.
- Easy-to-read internal depth gauge: Simplifies depth control for accurate drilling.
SPECIFICATIONS:
- Drilling Capacity: 1-1/2 in.
- Face Mill Capacity: 4 in.
- End Mill Capacity: 3/4 in.
- Swing: 21 in.
- Max Distance Spindle to Table: 15-3/4 in.
- Spindle Taper: R8
- Spindle Travel: 5 in.
- Spindle Travel Auto: 4-1/2 in.
- Quill Diameter: 3 in.
- Column Diameter: 4-1/2 in.
- Number of Spindle Speeds: 6
- Range of Spindle Speeds: 65-1550 RPM
- Table Size (L x W): 8-1/4 x 28-3/4 in.
- Table Longitudinal Travel: 20-1/2 in.
- T-Slots Number and Size: 4 & 5/8 in.
- Base Dimensions: 24-1/4 x 15-15/16 in.
- Motor: 1-1/2 HP, 115/230V, 1Ph
- Overall Dimensions (L x W x H): 28 x 39-1/4 x 42-1/2 in.
- Weight: 694 lbs. (approx.)
HOW TO USE:
- Assembly: Refer to the manufacturer’s instructions for proper assembly of the machine. This may involve securing the mill/drill to a sturdy base (not included with model 351141) and installing the desired tooling.
- Set up the workpiece: Secure the workpiece to the milling table using clamps or a vise (not included).
- Adjust settings: Choose the appropriate spindle speed and feed rate based on the material and operation. Utilize the digital readout (DRO) for precise positioning of the cutting tool.
- Drilling: Engage the drilling function and power downfeed (if desired) to create precise holes in the workpiece. The internal depth gauge aids in drilling to a specific depth.
- Milling: Utilize the X and Y table movements to maneuver the workpiece for milling operations. The tilting head allows for angled milling cuts.
BENEFITS OF USING Jet JMD-40GH GH Mill/Drill Newall DP700 2-Axis DRO X-Powerfd (351141):
- Precision and Accuracy: The combination of a heavy-duty build, digital readout (DRO), and power downfeed ensures precise results for drilling and milling.
- Versatility: Handles a wide range of drilling and milling tasks with various materials due to its multiple features and R8 spindle taper compatibility.
- Efficiency: The X-powerfeed and quick-select gear shift levers contribute to efficient operation.
- Durability: Built to withstand demanding use in workshops and professional settings.
FEATURES:
- Heavy-duty construction
- 6-speed geared head
- Newall DP700 2-Axis DRO
- X-Powerfeed
- R8 spindle taper
- Tilting head (90° left & right)
- Power downfeed (standard)
- Easy-to-read internal depth gauge
- Headlights for improved visibility
