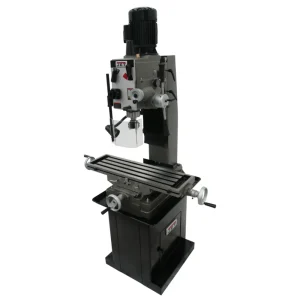

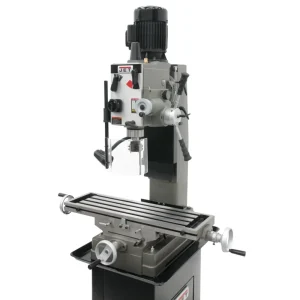

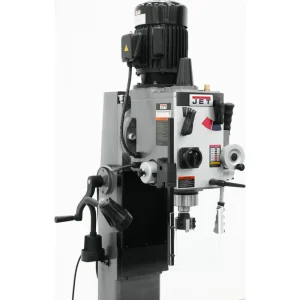

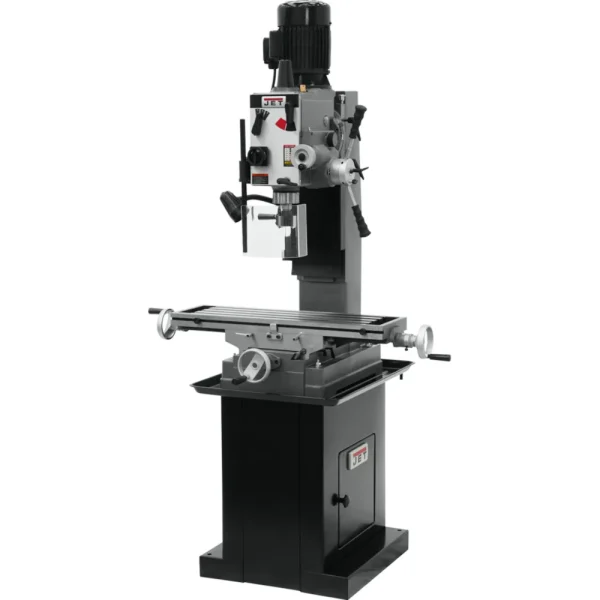

The Jet JMD-45GHPF Sq. Col. Mill/Drill w/Dwnfd w/DP700 2-Axis DRO (351152) is a heavy-duty machine designed for precision drilling and milling tasks in high-intensity environments. Its rigid square column with dovetail ways minimizes deflection during operation, ensuring accurate results.
KEY FEATURES AND BENEFITS:
- Powerful and Versatile: Equipped with a 1.5 HP motor and a 6-speed geared head, this mill drill tackles various drilling and milling applications.
- Precise Control: The power downfeed allows for controlled cutting depth, while the Newall DP700 2-axis DRO provides precise positioning on the X and Y axes.
- Durable Construction: The square column design with dovetail ways enhances stability and reduces vibration for clean cuts.
- User-Friendly Features: The JMD-45GHPF boasts a user-friendly design with a calibrated fine downfeed, easy-to-read internal depth gauge, a head that tilts left and right 90 degrees, and quick-select gear shift levers for rapid spindle speed changes.
- Additional Features: Includes a spindle guard, work lamp, R8 spindle for compatibility with various milling tools, and a spacious table with T-slots for workpiece securement. (Optional stand sold separately)
SPECIFICATIONS:
- Motor: 1.5 HP
- Spindle Speeds: 6 (65 – 1,550 RPM)
- Spindle Taper: R-8
- Spindle Travel: 5 in.
- Drilling Capacity: 1.5 in.
- End Mill Capacity: 0.75 in.
- Face Mill Capacity: 4 in.
- Longitudinal Table Travel (X-axis): 20.5 in.
- Table Size: 9.5 in. x 32.25 in.
- Swing: 19.75 in.
- Quill Diameter: 3 in.
- T-Slot Size: 0.625 in. (5/8 in.)
- Number of T-Slots: 4
- Distance Spindle to Table: 18.125 in.
- Base Dimension: 26-11/16 in. x 15-15/16 in.
- Column Diameter: 7-7/8 in. x 7-5/8 in.
- Weight: 727 lbs. (without stand)
- Voltage: 115V/230V (selectable)
- CSA/CUS certified
HOW TO USE:
- Setup: Secure your workpiece to the table using clamps and T-slot accessories (not included). Ensure the machine is on a level and stable surface.
- Power & Speed Selection: Turn on the machine and select the appropriate spindle speed based on your material and application using the gear shift levers.
- Drilling: For drilling operations, lower the quill using the feed handle or power downfeed (if using). Engage the feed and slowly drill into the workpiece, monitoring depth with the depth gauge or DRO.
- Milling: For milling operations, install the desired milling cutter in the R8 spindle. Lower the quill and engage the feed while moving the workpiece across the table using the handwheels to achieve the desired cut.
BENEFITS OF USING Jet JMD-45GHPF Sq. Col. Mill/Drill w/Dwnfd w/DP700 2-Axis DRO (351152):
- Delivers high precision and accuracy for demanding drilling and milling tasks.
- Offers exceptional rigidity for stable operation and clean cuts.
- Versatile machine for handling various drilling and milling applications.
- User-friendly features enhance ease of operation and control.
- Durable construction ensures long-lasting performance.
FEATURES:
- 1.5 HP motor
- 6-speed geared head
- Power downfeed
- Newall DP700 2-axis DRO
- Square column with dovetail ways
- Spindle guard
- Work lamp
- Calibrated fine downfeed
- Easy-to-read internal depth gauge
- Head tilts left & right 90 degrees
- Rapid spindle speed changes
- R8 spindle taper
- Spacious table with T-slots
