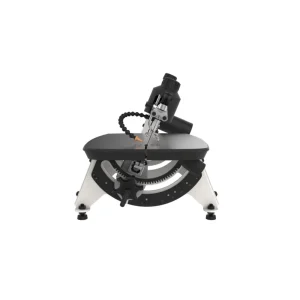

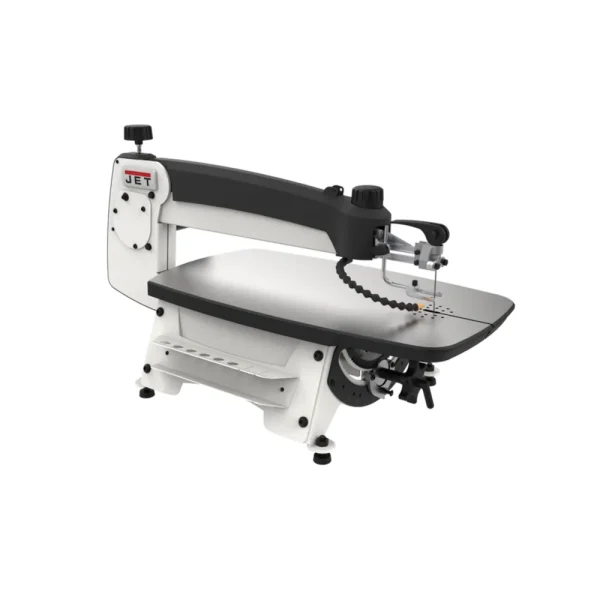

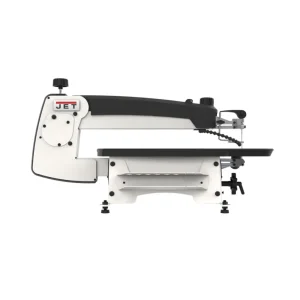

Jet JWSS-22B 22 Inch Scroll Saw with Foot Switch (727200B) is a top-tier woodworking tool designed for exceptional performance and precision in intricate projects. It features innovative capabilities and a user-friendly design, making it suitable for woodworkers of all skill levels.
KEY FEATURES AND BENEFITS:

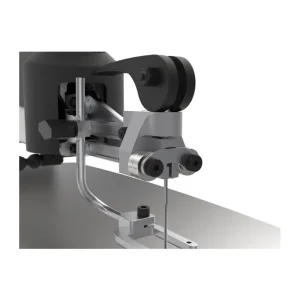

- Effortless Blade Changes: Exclusive upper blade holder clamps and tensions the blade in one step. Removable lower blade holder simplifies blade changes.
- Enhanced Stability and Precision: Large 12-7/8″ x 23″ cast iron table minimizes vibrations, ensuring accurate cuts. Slotted table design allows quick blade changes.
- Expanded Cutting Capacity: 22″ throat capacity, arm tilts 45 degrees right and 40 degrees left, accommodating larger workpieces and enabling precise angled cuts.
- Convenient Storage and Dust Collection: Integrated blade storage and removable dust port keep workspace organized and clean.
- Versatile Performance: Variable speed range (400-1,550 strokes per minute) and 2″ maximum cutting depth adapt to various materials and techniques.
SPECIFICATIONS:
- Model: JWSS-22B
- SKU: 727200B
- Brand: Jet
- Table Material: Cast Iron
- Stroke Length: 3/4″
- Tilting Function: Arm
- Blade Tilt Range: 45 degrees Right, 40 degrees Left
- Throat: 22-3/8″
- Maximum Cutting Depth: 2″
- Speed Range: 400 – 1,550 strokes per minute
- Table Size (L x W): 12-2/3″ x 23-5/8″
- Motor Voltage: 120V
- Motor Amps: 1.3
- Table Height: 7-3/4″ to 8-3/4″
- Assembled Machine Dimensions (L x W x H): 33″ x 15-1/2″ x 17-1/2″
- Net Weight: 68.2 lbs.
HOW TO USE:
- Setup: Securely mount the scroll saw on a sturdy workbench or stand.
- Blade Installation: Follow the user manual to install upper and lower blades.
- Material Preparation: Secure workpiece using clamps or material hold-down.
- Adjust Settings: Select speed and tension settings based on material and cut type.
- Start Cutting: Use foot switch to activate saw, guide workpiece into blade.
- Maintain Control: Use both hands to guide workpiece, follow pattern or design.
- Finish and Clean: Turn off saw, remove workpiece, clean table and blade area.
BENEFITS OF USING Jet JWSS-22B 22 Inch Scroll Saw with Foot Switch (727200B):
- Achieve precise and intricate cuts in various materials.
- Enjoy comfortable and efficient scrolling with user-friendly design.
- Save time with innovative one-step blade change mechanism.
- Work on larger projects with 22″ throat capacity.
- Maintain clean workspace with integrated dust collection.
FEATURES:
- Exclusive 2-in-1 upper blade change mechanism.
- Removable lower blade holder.
- Large cast iron table with slotted design.
- 22″ throat capacity.
- Tilting arm with 45-degree right and 40-degree left tilt.
- Integrated blade storage with built-in wrench.
- Top-lift, spring-loaded arm.
- Removable dust port.
- Variable speed range of 400-1,550 strokes per minute.
- 2″ maximum cutting depth.
- Convenient speed and tension controls.
- Foot switch operation.
- Onboard dust blower.
- Material hold-down.
