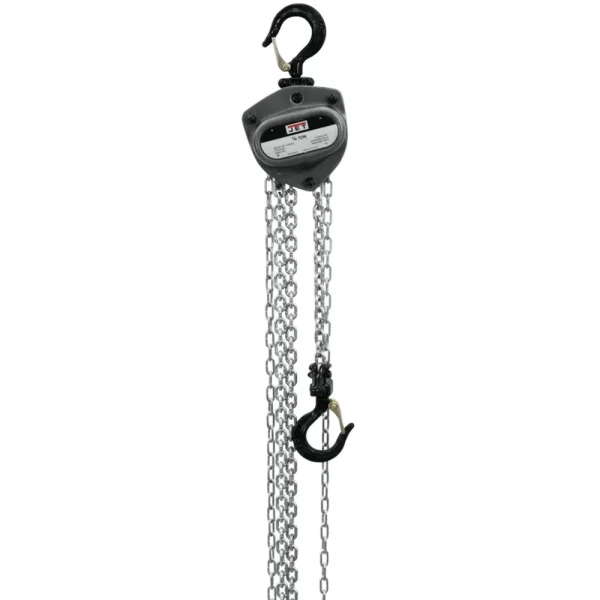

Jet L100-250WO-20 1/4T Hoist w/20′ Lift & Overload Protection (101250) is a rugged and reliable lifting solution designed for demanding industrial environments. Built with durable materials and innovative features, this hoist is engineered to provide years of dependable service.
KEY FEATURES AND BENEFITS
- 1/4 Ton Capacity: Safely lift loads up to 550 lbs.
- 20-Foot Lift: Offers ample lifting height for various applications.
- Overload Protection: Prevents lifting damaging loads beyond its rated capacity, ensuring safety and prolonging hoist life.
- Patented Fused Brake System: Reduces maintenance needs and minimizes downtime, enhancing productivity.
- Durable Construction: Made with high-quality materials and components, ensuring longevity and reliability.
- Grade 100 Load Chain: Stronger and more durable than standard grade 80 chains.
- Easy to Operate: Smooth and efficient operation with minimal effort.
SPECIFICATIONS
- Stock Number: JT9-101250
- Capacity: 550 lbs (1/4 ton)
- Lift: 20 feet
- Load Chain Dimensions: 4 x 12 mm
- Model Number: L-100-250WO-20
- Warranty: Lifetime
- Weight: 14 lbs
- Pull to Lift Capacity: 42 lbs
- Gross Weight: 16 lbs
- Headroom: 9-13/16 inches
HOW TO USE
- Inspect: Before each use, inspect the hoist for any damage or wear.
- Attach: Securely attach the hoist to a suitable support structure.
- Rig the Load: Properly rig the load to the hoist’s hooks, ensuring a balanced and secure connection.
- Lift: Slowly and steadily pull the hand chain to lift the load.
- Lower: Gently pull the other side of the hand chain to lower the load.
- Store: After use, clean and store the hoist in a dry and safe location.
BENEFITS OF USING THE JET L100-250WO-20 1/4T HOIST W/20′ LIFT & OVERLOAD PROTECTION (101250)
- Increased Safety: Overload protection prevents accidents and injuries.
- Reduced Downtime: Durable construction and low-maintenance design minimize costly repairs and delays.
- Improved Productivity: Efficient operation and reliable performance enhance workflow efficiency.
- Long-Term Value: Lifetime warranty and high-quality components ensure a lasting investment.
FEATURES
- Triple spur gear drive train with heat-treated alloy steel gears
- Drop forged, quenched, and tempered carbon steel hooks
- Cast steel safety latches with Allen head screws and lock nuts
- Double enclosed brake cover for added protection
- Sealed ball bearing supported load sheave
- Investment cast anchor plate and heat-treated internal parts
- Zinc coating on internal parts for corrosion resistance
