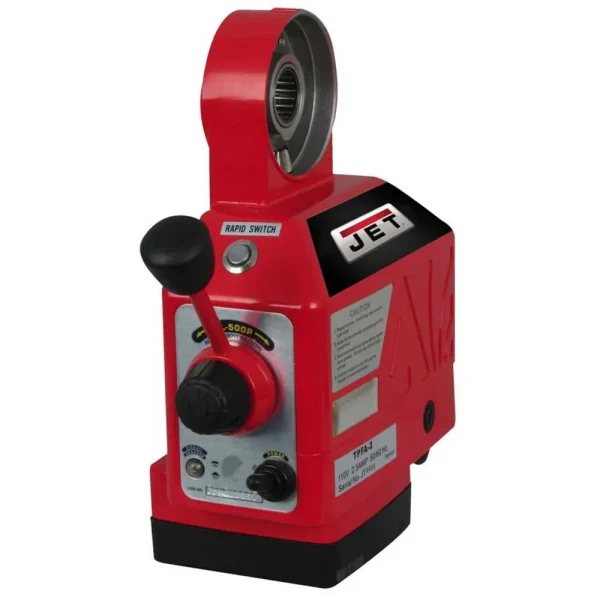

Jet X-Axis Table Powerfeed w/780lb Torque for Milling Machine (350194) is a precision tool designed to enhance the performance of your milling machine. This power feed provides automated control over the table’s movement along the X-axis, significantly increasing efficiency and accuracy in milling operations.
KEY FEATURES AND BENEFITS:
- Automated table movement: Precise control over the X-axis for consistent results.
- Variable feed rate: Adjusts to various materials and cutting conditions (0-32 IPM).
- Rapid traverse: Quickly positions the table for efficient workflow.
- Adjustable stops: Prevent overtravel and ensure consistent cut depths.
- Built-in clutch: Protects against overload damage.
- Customizable: Compatible with various milling machine models through optional tool kits.
SPECIFICATIONS:
- Torque: 780 lbs
- Voltage: 115 VAC
- Amperage: 1 A
- Feed rate: 0-32 IPM
- Rapid traverse: 32 IPM
HOW TO USE:
- Installation: Securely mount the power feed to your milling machine’s X-axis following the manufacturer’s instructions.
- Connect power: Plug the power feed into a dedicated 115 VAC outlet.
- Adjust feed rate: Set the desired feed rate using the control panel.
- Engage power feed: Activate the power feed to start table movement.
- Utilize adjustable stops: Set desired cut depth and engage automatic shut-off.
- Rapid traverse: Quickly move the table between cuts using the rapid traverse button.
BENEFITS OF USING JET X-AXIS TABLE POWERFEED W/780LB TORQUE FOR MILLING MACHINE (350194):
- Increased productivity: Automate table movement for faster material removal.
- Improved accuracy: Consistent feed rate ensures precise cuts and finishes.
- Reduced operator fatigue: Minimize manual effort and strain.
- Enhanced safety: Built-in clutch and adjustable stops protect against damage.
- Versatility: Compatible with various milling machine models and applications.
FEATURES:
- Longitudinal power feed for X-axis
- 780 lbs torque for efficient cutting
- Variable feed rate for precise control
- Rapid traverse for quick positioning
- Adjustable stops for safety and accuracy
- Built-in clutch for overload protection
- Compatible with JET milling machine models
