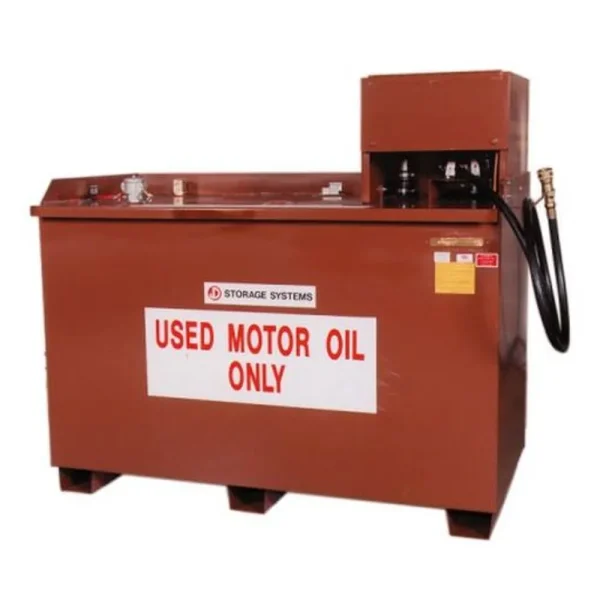

John Dow Used Oil Storage System (AGS-500D) significantly improves the safety, cleanliness, and efficiency of used oil storage and transfer. This system is designed with a 500-gallon capacity and double-wall construction, adhering to the strictest environmental and safety standards, including UL 142 and NFPA 30.
- Specifications and Dimensions:
- Capacity: 500 gallons
- Dimensions: 82 x 49 x 40 inches
- Weight: 1300 lbs
- Benefits:
- UL Listed double-wall tank provides 110% secondary containment, exceeding safety standards.
- High-performance 1″ air-operated diaphragm pump with a 30 gpm capacity ensures efficient oil transfer.
- Durable high gloss enamel finish with protective covers for pump and shut-off valve ensures long-term resilience and reliability in harsh environments.
- Features:
- Automatic pump shut-off mechanism to prevent overfilling, enhancing operational safety.
- Includes a 3/4″ x 10′ suction hose with quick-connect coupler, simplifying the setup process.
- 2″ drop tube with camlock fitting and dust cover, along with an easy-to-read level gauge, streamlines maintenance and operation.
- Air filter/regulator integrated into the design to maintain clean air flow to the pump.
- Includes:
- All necessary fittings and connections for immediate operation.
- Manual-operated air inlet shut-off valve and air supply connection hose with quick-coupler.
