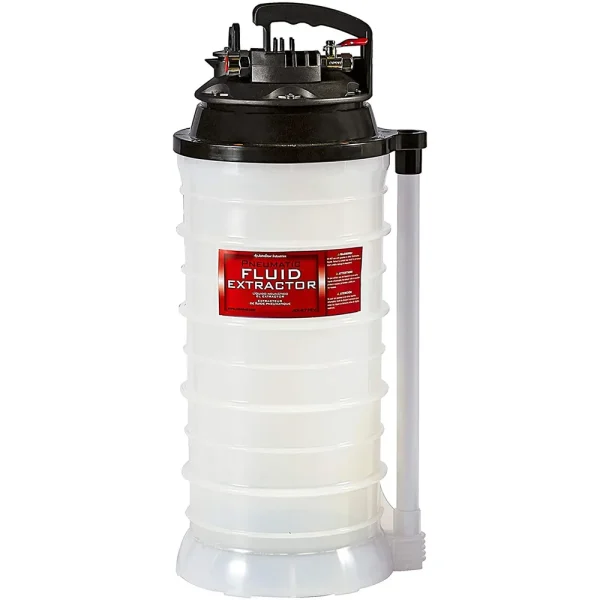

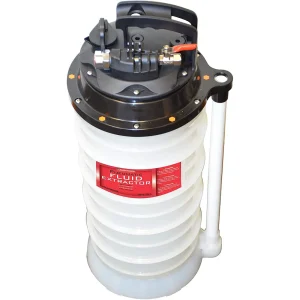

John Dow JDI-277EV Vacuum Fluid Extractor – Pneumatic
A wide range of fluids can be efficiently extracted from tanks and reservoirs using compressed air and a venturi vacuum system. Fluids are extracted through filler ports and dipstick tubes using the included extractor tubes.
- 2.7 gal. (10.5l) reservoir
- Compressed air/venturi vacuum operation
- Heavy-duty polyethylene construction
- Chemical resistant
- Convenient carry handle
- Air inlet with quick coupler
- Air on/off valve
- Extractor tube holder’
- Muffler – for quiet operation
- Automatic stop to prevent overfill
- Replacement tube set available (No. CJ-006)
- Full color retail package
Extractor tubes included:
- .23 in. OD x 2.9 ft. long (Dipstick tube) (5.8mm x .85 m)
- .26 in. OD x 2,9ft long (Dipstick tube) (6.7mm x .85m)
- .39 in OD x 3.2 ft. long (Main extraction tube) (9.8mm OD x 1m)
Specifications:
- Reservoir capacity: 2.7 gal (10.5l)
- Max operating temp: 212°F (100°C)
- Air inlet size: 1/4″NPT
- Weight: 6.2 lbs. (2.8 kgs.)
- Size (packaged): 23.0”x 8.9” x 8.9”
