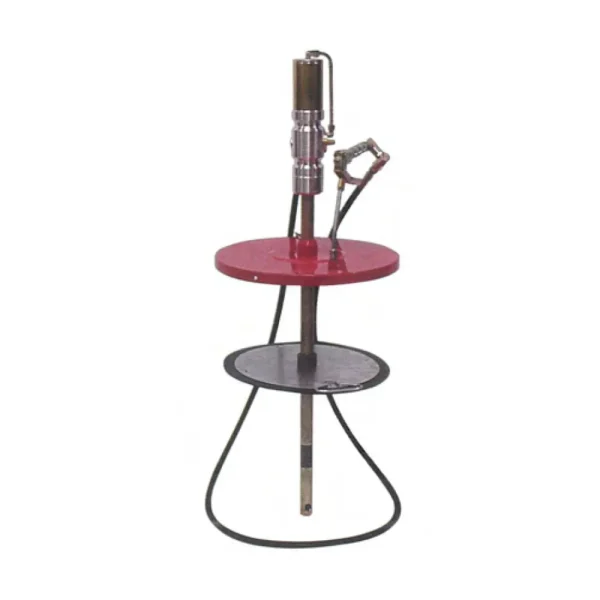

John Dow JDOL-16 Pneumatic Oil System for 16 Gallon Open-End Drum with 3:1 Pump

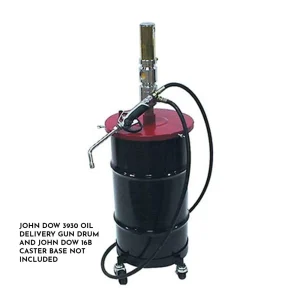

Please note: John Dow 3930 OIL DELIVERY GUN DRUM AND John Dow 16B CASTER BASE NOT INCLUDED
Oil Delivery System
Complete Packages – includes all required equipment. For motor oil, synthetic oil, hydraulic oil and ATF. Designed for 16-gallon and 55-gallon drums.
Features include:
- Powered by 3:1 ratio medium pressure pump
- Differential air motor ensures smooth pumping
- Heavy-duty control valve
- 10′ delivery hose
Specifications:
- Pressure Ratio: 3:1
- Air inlet pressure: 70 – 115 psi
- Air inlet connection: 1/4″ NPT (Female)
- Air motor effective diameter: 2.49″ (63mm)
- Max pressure: 348 psi
- Outlet connection: 1/2″ NPT (Male)
- Model No.: JDOL-16
- Container: 16-gal
- Pump: JD-3610
- Hose: JDM-1038
- Delivery Gun: JD-3930
- Cover: JD-3566A
- Weight: 26 lbs
