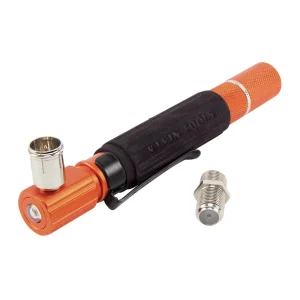

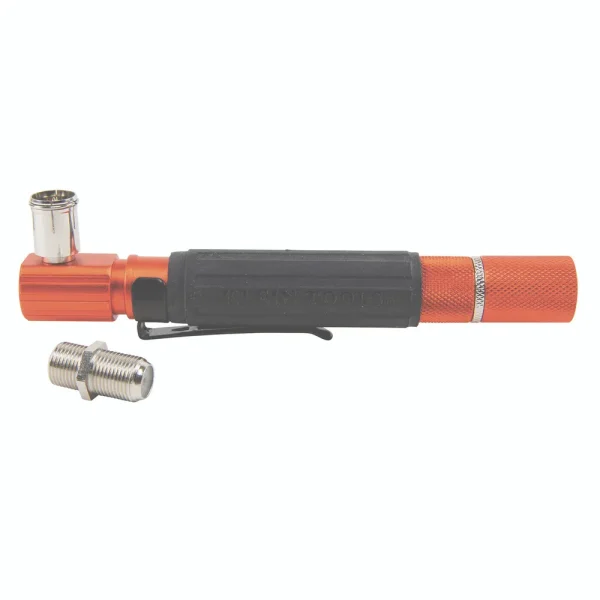

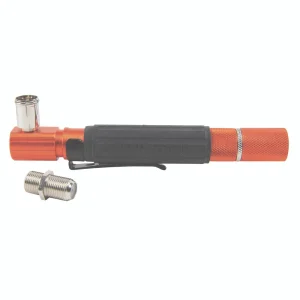

Klein Tools VDV512-007 Pocket Continuity Tester for Coax Cable
Quickly trace coaxial cable with this pocket-sized toner. Identify and test for continuity and short faults via audible beep and LED indicators. Remote beeps loudly to confirm continuity. LED lights green for continuity and red for shorts. F-adapter enables testing of loose cables and installed cable runs. Tester switches off when remote is docked to save battery life. Battery included.
- Simple compact wire tracing of coaxial cables
- Identifies and tests cable drops for pass, short faults and location via audible beep and LED indicators

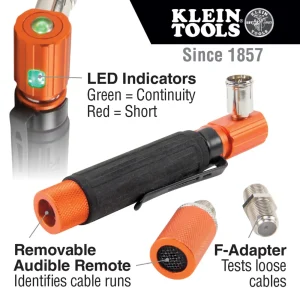

- LED lights green on a correctly made cable drop, red for short fault

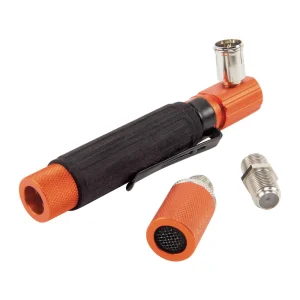

- Remote contains loud audible beep for easy location identification
- Female to female F-adapter (included) enables testing of loose cables and installed cable runs
- Cushion-Grip handle for comfort and secure grip
- Docked remote switches tester off to conserve battery life
- Pocket clip secures tester to shirt pocket
- AAA alkaline battery included
Specifications:
- Type: Pocket Coax Cable Continuity Tester
- Application: Wire Tracing of Coaxial Cables
- Special Features: Remote with Audible Beep; LED Colored Light Indicators
- Cable Type: RG59, RG6/6Q
- Overall Length: 5.0” (127.0 mm)
- Overall Height: 0.75” (19.1 mm)
- Overall Width: 1.25” (31.8 mm)
- Material: Aluminum and Rubber
- Location ID: 1
- Batteries: 1 x AAA
- Battery Life: 6 Hours Active
- Drop Protection: 6.56′ (2 m)
- Supported Remotes: 1
- Connection & Adapter Types: F-Connector
- Display: LED
- Multiple Style Tone Generator: No
- Faults Detected: Short Fault, Open Fault
- Test & Measure Types: Continuity
- Included: F-adapter, Pocket Clip, Battery
- Weight: 4.8 oz (136 g)
- UPC: 092644691416
Warnings:
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Not for use on powered circuits or outlets.
