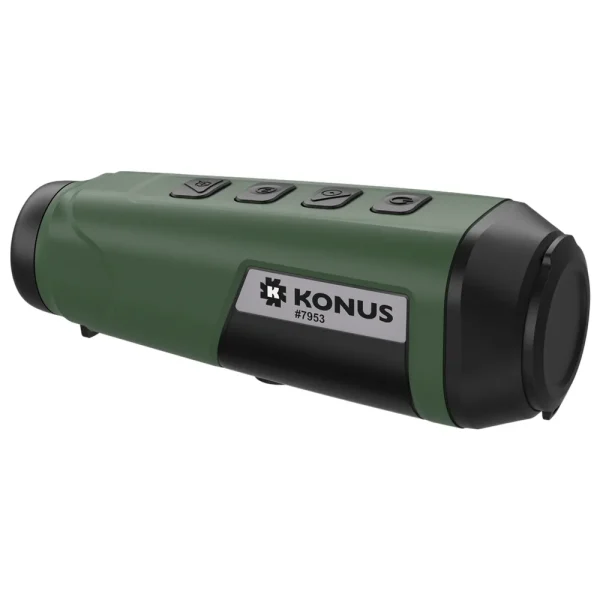

The Thermal Excellence model #7953 offers an exceptional combination of versatility and competitive pricing. This handheld thermal monocular camera lets you choose between four different palettes and includes a photo/video recording function. Additionally, it can transfer thermal images via Wi-Fi, allowing you to view them live on your cellphone. With a 0.6x-2.4x zoom system and a larger display with an enhanced field of view, this unit dramatically outperforms the competition in optical performance. Its 160×120 pixels resolution and high sensitivity detector ensure clear and precise thermal imaging. The built-in rechargeable lithium battery provides extended usage time, and the device’s waterproof design up to 3.3ft depth ensures durability in various conditions. The 8GB internal memory offers ample storage for your recordings and images. Ideal for professional use, this thermal monocular camera combines advanced features with user-friendly functionality to deliver outstanding performance in any situation.
Specifications:
- Handheld thermal monocular camera
- 160×120 pixels resolution, high sensitivity detector
- Built-in rechargeable lithium battery
- Wi-Fi hotspot
- Zoom magnification from 0.6x to 2.4x
- 8GB internal memory
- Waterproof up to 3.3ft depth
- Photo and video recording function
Technical Data:
- Detection range (standard car size): 559m / 1833.9ft
- Detection range (average human size): 200m / 656.1ft
- Recognition range (standard car size): 140m / 459.3ft
- Recognition range (average human size): 46m / 150.9ft
- Identification range (standard car size): 70m / 229.6ft
- Identification range (average human size): 23m / 75.4ft
- Weight: 250g / 8.81oz
- Length: 158.3mm / 6.23″
Thermal Module:
- Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- Max resolution: 160×120
- Response waveband: 8μm to 14μm
- NETD: less than 35mk (@25°C), F#=1.0
- Lens (focal length): 6.2mm
- Field of view: 14.7°x18.7° (HxV)
- Digital zoom: from 0.6x to 2.4x
- Aperture: F1.1
- Magnification: 0.6x to 2.4x
Image Display Monitor:
- 0.2 inches LCOS
- Resolution: 720×540
- FFC (Flat Field Correction): Auto, Manual, External Correction
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- Frame frequency: 50Hz
Smart Functions:
- Hot track
- Wi-Fi
- Stand-by mode
System:
- Storage: Built-in memory module (8GB)
- On-board video recording
- Capture snapshot
Power Supply:
- Battery type: Built-in 18650 lithium battery
- Battery operating time: Up to 10 hours continuously running (with Wi-Fi hotspot function off)
- Battery capacity display
General:
- Power: 5V DC/2A, 1.5W
- Working temperature: -20°C to 55°C (-4°F to 131°F)
- Protection level: Submersible waterproof rating IP-67
- Dimensions: 158.3mm x 61mm x 57mm (6.23″ x 2.40″ x 2.24″)
- Weight: 250g (0.55lb)
