They say that “necessity is the mother of invention” and it’s TRUE. The new Axle Hoist is one such example: You need to lift an axle, but you are only one person. Now you can! By working “Smarter and NOT harder” with the clever Axle Hoist by TheAutoDolly’s engineering dept. Example images are on the reverse. Lift your axle & roll it to where you need it. Works hand-in-hand with our Rear Axle Stand Adapter!

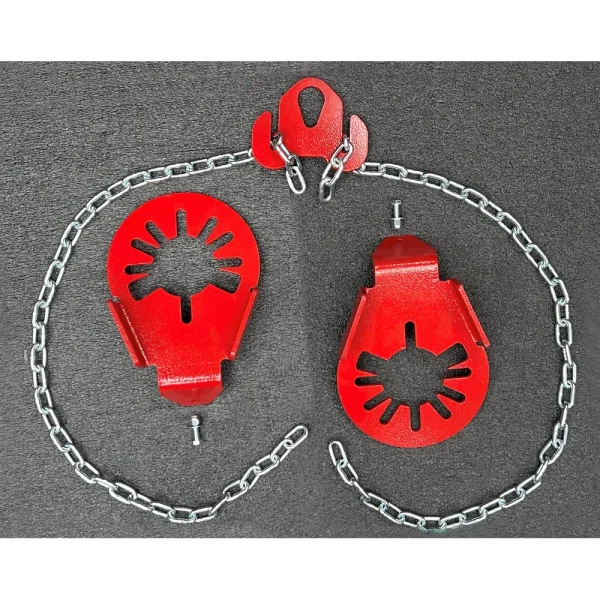

- Step 1: Attach the hub to the Hoist Couplers on each side. It is designed to fit virtually all bolt patterns. Use a minimum of two lug nuts. Three are highly recommended.
- Step 2: Attach the top junction piece securely to your “cherry picker”. Attach the chain from each side’s hoist couplers to the top junction piece.

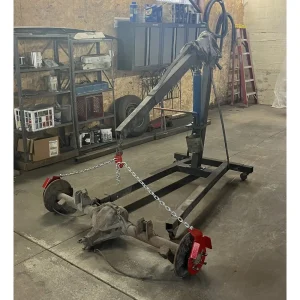

- Step 3: Carefully raise the arm of the “cherry picker” to safely lift the axle off the floor. For maximum stability, keep it just off the floor until you get to your intended target.
- Step 4: When there, raise the axle to the correct height and roll into place. Carefully lower onto the workbench or (even better) The amazing Axle Stand Adapter.
