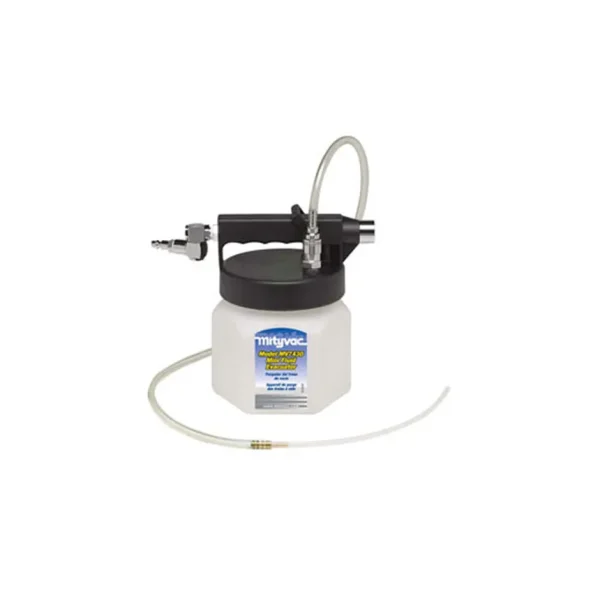

Mityvac Mini Fluid Evacuator – MTY-MV7430

• Compressed air operation
• Integrated 1.9 quart (1.8 liter) capacity reservoir
• Variable control thumb throttle
• Swivel air inlet
• Quiet, muffled exhaust
• Automatic overflow prevention

Specifications

• Reservoir Capacity: 1.9 quarts (1.8 liters)
• Working Pressure: 60 – 150 psi (4.1 – 10.3 bar)
• Vacuum @ 90 psi (6.2 bar): 26 in. Hg (88 kPa)
• Air Consumption @ 90 psi (6.2 bar): 4.3 cfm (2.0 l/s)
• Flow Rate:
  • @ 60 psi (4.1 bar): 50 oz/min (1460 ml/min)
  • @ 90 psi (6.2 bar): 70 oz/min (2100 ml/min)
  • @ 150 psi (10.3 bar): 70 oz/min (2100 ml/min)
• Inlet Thread Size: 1/4 ” NPT
• Packaged Weight: 4.8 lbs. (2.2 kg)
• Size:9″ tall x 6.5″ dia. (230 mm tall x 150 mm dia.)

Includes

• Fluid evacuator
• 4 ft (1.2 m) fluid evacuation hose
• Molded base w/ screws for bench mounting
• Hanging hook
• User’s manual
