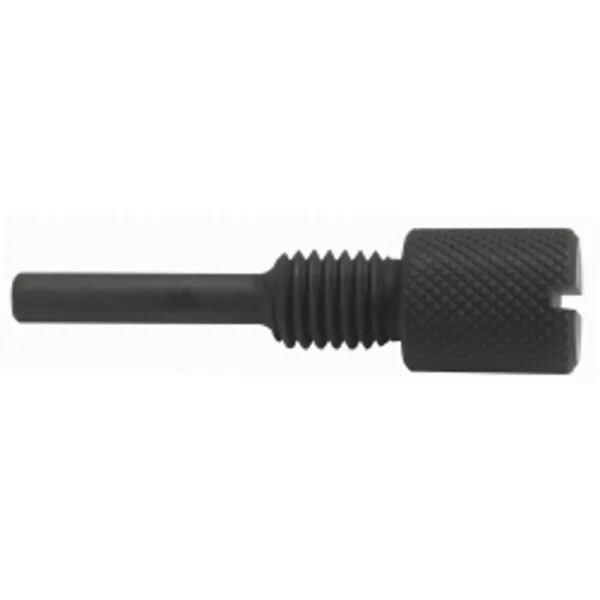

The OTC Crankshaft TDC Timing Pin (567622) is a specialized tool designed to accurately align the crankshaft to Top Dead Center (TDC) during engine timing procedures. This essential tool is compatible with various Ford models, making it a valuable asset for both professional mechanics and DIY enthusiasts.
KEY FEATURES AND BENEFITS:
- Precision Alignment: Ensures accurate crankshaft positioning for precise timing.
- Durability: Constructed from high-quality materials for long-lasting performance.
SPECIFICATIONS:
- Manufacturer: OTC Tools
- Part Number: 567622
- Purpose: Crankshaft TDC Alignment
- Compatibility: Various Ford Models
- Material: High-Quality Steel
HOW TO USE:
- Identify the Timing Mark: Locate the timing mark on the crankshaft pulley or flywheel.
- Insert the Pin: Carefully insert the timing pin into the designated hole on the crankshaft pulley or flywheel.
- Align the Mark: Rotate the crankshaft until the timing mark aligns with the reference point on the engine block.
- Verify Alignment: Double-check the alignment to ensure accurate timing.
BENEFITS OF USING OTC CRANKSHAFT TDC TIMING PIN (567622):
- Optimal Engine Performance: Accurate timing leads to improved engine efficiency and power output.
- Reduced Emissions: Proper timing helps minimize harmful emissions.
- Smoother Engine Operation: Ensures smooth and reliable engine function.
- Extended Engine Life: Consistent and accurate timing can prolong engine lifespan.
FEATURES:
- Easy to Use: Simple and straightforward application process.
- Wide Compatibility: Compatible with numerous Ford vehicle models.
