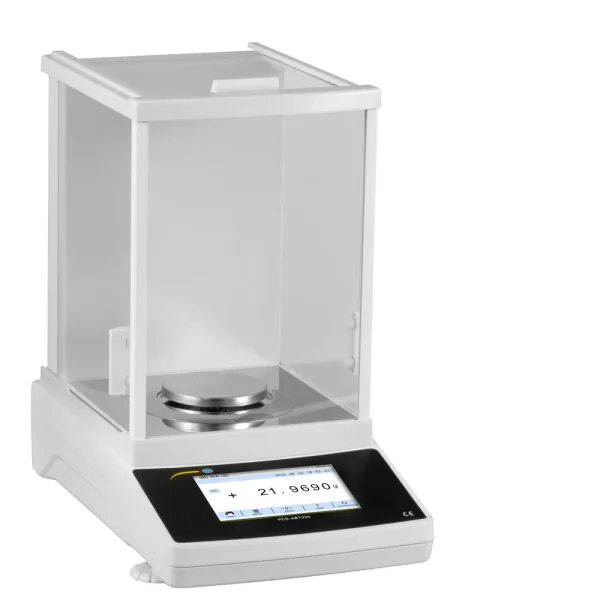

PCE Instruments Analytical Balance with Touchscreen Display (PCE-ABT 220) offers high-precision weighing with a resolution of 0.1 mg and a weighing capacity of up to 220 g. Designed for laboratory applications, this balance includes a draft shield to prevent external factors from affecting accuracy.
The 5″ touchscreen display provides a user-friendly interface for seamless operation, with switchable units for g, oz, ct, and mg. This analytical balance features an internal calibration function to ensure long-term measurement accuracy. It includes an RS232 interface for direct data transfer to a PC.
- Specifications and Dimensions
- Weighing range: 0 … 220 g
- Resolution: 0.1 mg
- Measurement accuracy: ± 0.5 mg
- Repeatability: ± 0.2 mg
- Linearity: ± 0.5 mg
- Calibration: Internal
- Weighing surface: Ø 80 mm stainless steel pan
- Settling time: < 4 s
- Adjustable units: g, oz, ct, mg
- Operating conditions: 10 … 40 °C, <85 % RH (non-condensing)
- Touchscreen: 5″ LCD
- Interface: RS232
- Power supply: 220 V AC
- Dimensions: 340 x 215 x 350 mm
- Weight: 8.5 kg
- Key Features and Benefits
- 5″ touchscreen display for easy operation
- High-precision weighing with 0.1 mg resolution
- Windshield to prevent external interference
- Built-in RS232 interface for data transfer
- Spirit level and adjustable feet for stable setup
- Multi-unit switching for flexible measurements
- Quick internal calibration for long-term accuracy
