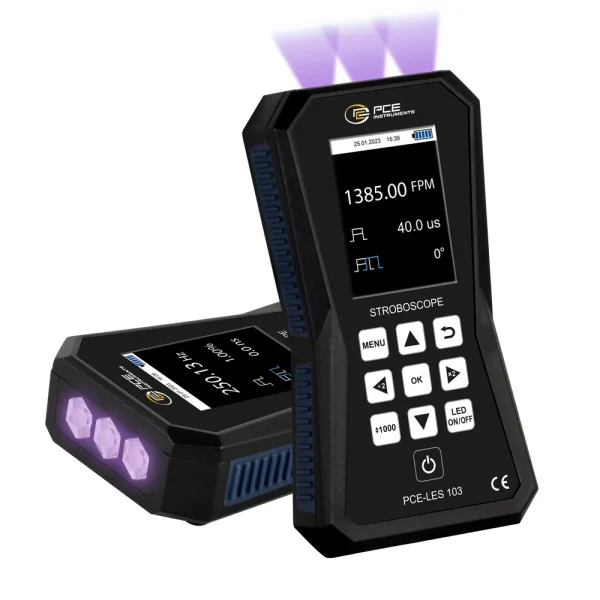

PCE Instruments Automotive Tester/Stroboscope (PCE-LES 103UV-385) is a high-performance device designed for precision motion analysis and industrial inspection. With three UVA high-power LEDs (385 nm), this stroboscope provides an intensity of 317 μW/cm² at 30 cm, making it ideal for monitoring rotating machinery and detecting high-speed motion with clarity.
The PCE Instruments Automotive Tester/Stroboscope allows precise flash frequency adjustment in FPM and Hz. The intuitive interface includes phase shift capabilities and digital pulse width modulation for enhanced visibility and control.
- Specifications and Dimensions
- Flash Frequency: Adjustable in FPM and Hz
- Measurement Range: 60 to 300,000 FPM
- Phase Shift: -360° to +360°
- Pulse Width: 0.01% to 1% of pulse duration
- Light Intensity: 317 μW/cm² at 30 cm
- Light Wavelength: 380 … 390 nm
- Display Type: 2.8-inch TFT color display
- Operating Time: Up to 4.5 hours at 100 Hz
- Power Supply: 5V DC, 2A rechargeable battery
- Device Protection: IP52
- Device Weight: 284 g / 0.6 lbs
- Device Dimensions: 165 x 90 x 35 mm
- Operating Temperature: -20 to 60°C
- Key Features and Benefits
- Three UVA high-power LEDs for precise motion analysis
- Adjustable flash frequency for non-contact speed measurement
- Phase shift capability to optimize inspection accuracy
- Digital pulse width modulation for consistent light intensity
- Lightweight, battery-operated design for portability
- Auto shut-off feature to extend battery life
- Easy-to-use menu with multilingual support
- Ideal for industrial maintenance, printing, and textile inspections
